Product introduction
  • 01 Product application
        • For heavy-duty applications
        • Highest EMC safety
        • Almost unlimited resistance to oil
        • Preferably indoor applications
        • Unsupported travel distances and up to 65.62 ft (20 m) for gliding applications
        • Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

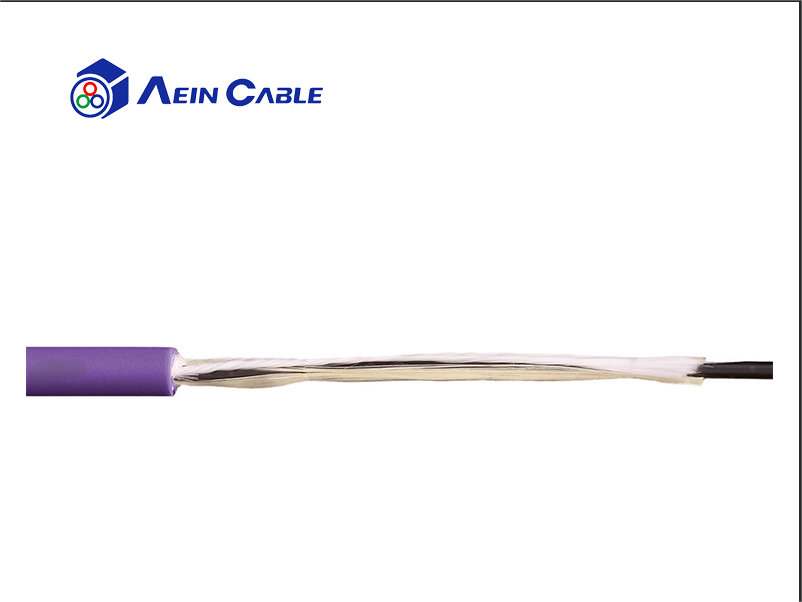

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.0 inch (75.0 mm)

Min. bend radius, flexible (factor)

7.0 x d

Min. bend radius, flexible

2.4 inch (60.0 mm)

Min. bend radius, fixed (factor)

12.5 x d

Min. bend radius, fixed

1.7 inch (42.0 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

140 °F (60 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +140°F (-50°C to +60°C) (following DIN EN 50305)

max. unsupported

33 ft/s (10 m/s)

a max.

65.6 ft/s² (20 m/s²)

Length of travel

Travels up to 66 ft (20 m)

Cable structure


980/1000 μm fibre with PE isolation.




Outer jacket Low-adhesion mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).

Jacket color

red lilac (similar to RAL 4001)
