Product introduction
  • 01 Product application flexible single core power cable for highest electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engeneering in the field of crane and conveyor technology in dry and humid rooms also outdoor.
  • 02 Product characteristicsUL/CSA approved halogen-free, flame-retardant, low abrasion, resistant to hydrolysis and microbe resistant to grease, coolant fluids and lubricants resistant to oil acc. to DIN EN 60811-404 silicone-free UV-resistant
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

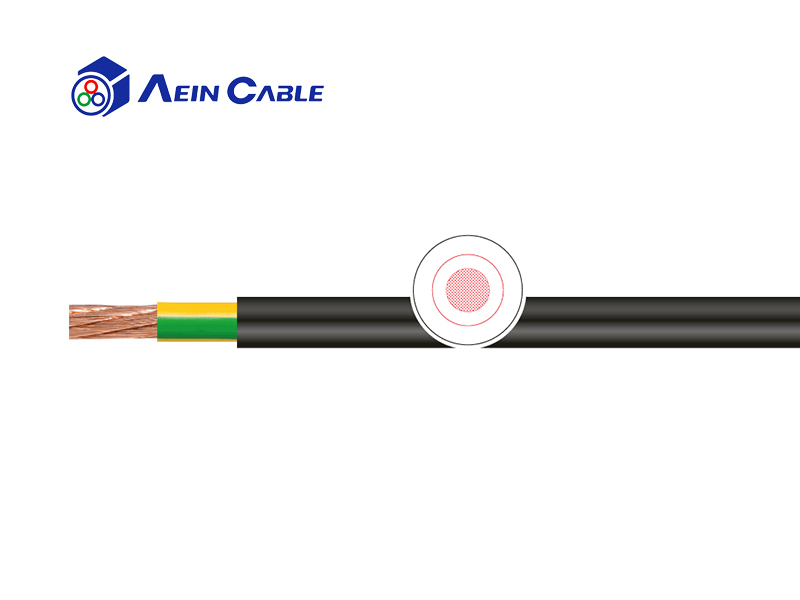

Product structure
Conductor material: Bare copper bundle strand
Conductor class: Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: TPE
Core identification: GNYE
Outer sheath: TPE
Sheath colour: Black (RAL 9005)
Rated voltage: 600/1.000 V
Testing voltage: 4.000 V
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max: -40 °C / +90 °C
Burning behavior: Acc. to IEC 60332-1, cable flame test, FT1
Approvals: UL/CSA - cURus 80 °C, 1.000 V
Speed: Self-supporting: max. 10 m/s, gliding: max. 6 m/s
Acceleration: Max. 100 m/s²
