Product introduction
  • 01 Product application
    Typical application areas
    • For heaviest duty applications and especially small radii down to 5 x d, Class 7
    • Slight oil influence, Class 2
    • Especially soft cable structure, for reduced restoring forces
    • Especially for very short, very fast applications with small radii and restricted installation space, Class 1
    • Pick and place machines, automatic doors, cleanroom, very fast handling machine
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

5.0 x d

Min. bend radius, e-chain®

1.1 inch (27.5 mm)

Min. bend radius, flexible (factor)

4.0 x d

Min. bend radius, flexible

0.9 inch (22.0 mm)

Min. bend radius, fixed (factor)

3.0 x d

Min. bend radius, fixed

0.6 inch (16.5 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

Length of travel

Unsupported up to 16 ft (5 m)

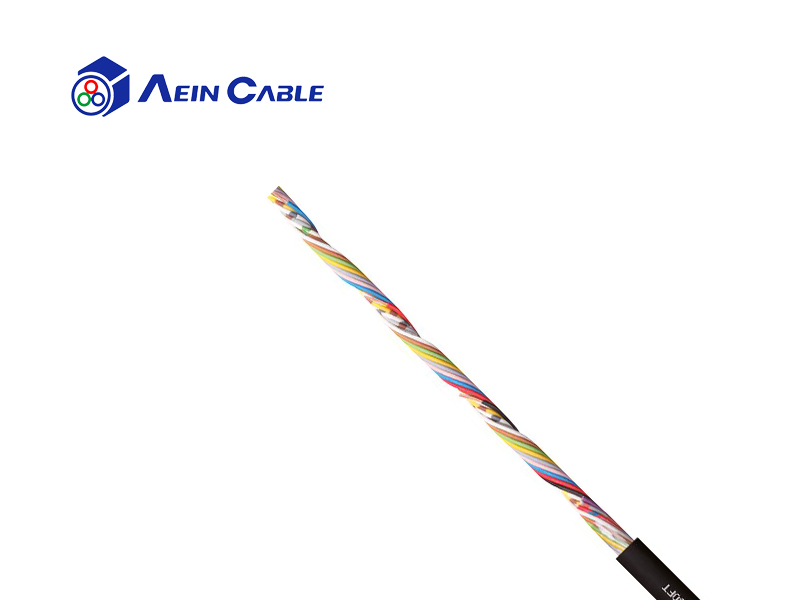

Cable structure


Very finely stranded special cores of particularly high-flex design made of bare copper wires.

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Cores stranded in one layer with especially short pitch length

Conductor identification

According to colour code





Jacket color

Jet black (similar to RAL 9005)
