Product introduction
  • 01 Product application
        • For flexing applications
        • Without influence of oil
        • Preferably indoor application
        • Indoor and outdoor applications without direct solar radiation
        • Especially for unsupported travels
        • Machining units/machine tools, low temperature applications
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

15 x d

Min. bend radius, e-chain®

4.7 inch (120 mm)

Min. bend radius, flexible (factor)

12 x d

Min. bend radius, flexible

3.8 inch (96 mm)

Min. bend radius, fixed (factor)

8.0 x d

Min. bend radius, fixed

2.5 inch (64 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

-40 °F to +158 °F (-40 °C to +70 °C) (following DIN EN 60811-504)

Temperature, fixed

-58 °F to 158 °F (-50 °C to 70 °C) (following DIN EN 50305)

a max., twisted

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)


± 180°, with 1 m cable length

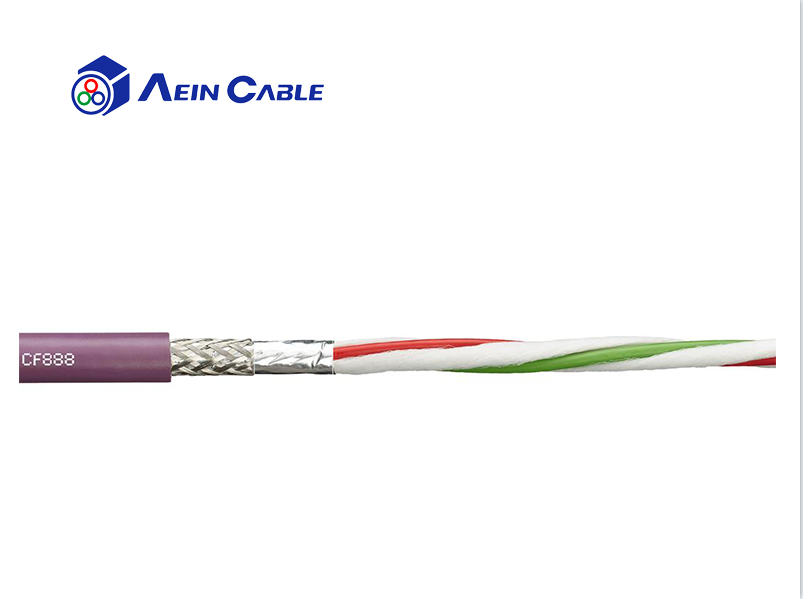

Cable structure


Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

According to bus specification

Overall shield

Extremely torsion-resistant tinned braided copper shield. Coverage approx. 60% optical.




Outer jacket

Low adhesion, highly abrasion resistant mixture on the basis of PVC, adapted to suit the requirements in e-chains®


Jacket color

red lilac (similar to RAL 4001)
