Product introduction
  • 01 Product application Robotic data cable for complex, highly flexible motion sequences in industrial applications (e.g. power chains, gantry robots, pick and place units, conveyor systems, machine tools, automatic. Manufacturing systems etc.).
  • 02 Product characteristicslow adhesion
    resistant to hydrolisis, microbes, cooling fluids, grease and lubricants  resistant to oil acc. to IEC 60811-2-1
    UV-resistant halogen-free acc. to IEC 60754-1
    EMC compliant shielding (C-PUR)
  • NEW: with Rip Cord, for faster and core protected dismantling
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

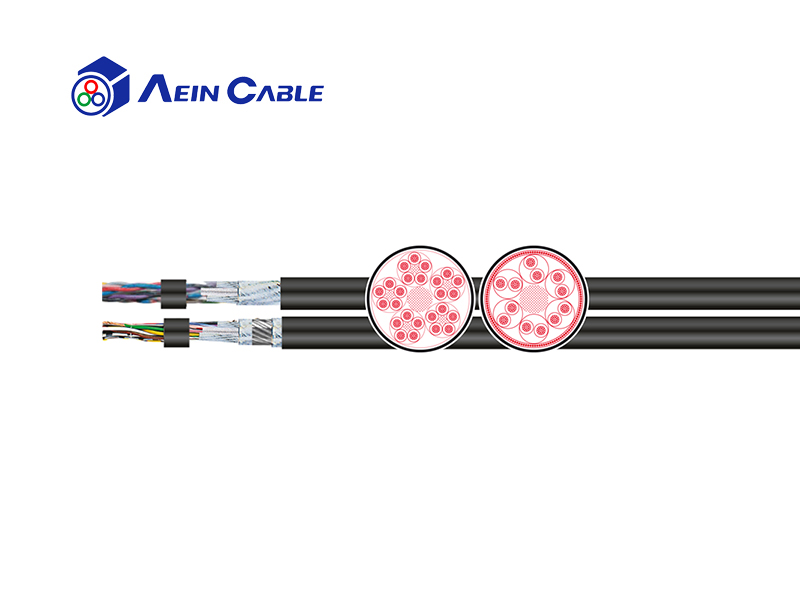

Product structure

Conductor material: Bare copper strand
Conductor class: Super fine wire acc. to IEC 60228 cl. 6 pt. 4
Core insulation: TPE
Core identification: Coloured acc. to DIN 47100
Overall stranding: ≤ 11 cores stranded in layers, ≥ 12 cores stranded in bundles, (TP): pairs stranded in layers, each element with sliding tape
Shield3: C-PUR: extremely torsion resistant spiral shield of tinned copper wires over sliding tape
Outer sheath: PUR
Sheath colour: Black (RAL 9005)
Rated voltage: 300 V
Testing voltage: Min. 2 kV
Current-carrying-capacity: Acc. to DIN VDE
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d < 10 m TL | 10 x d ≥ 10 m TL | Torsion: 10 x d
Operat. temp. fixed min/max: -50 °C / +80 °C
Operat. temp. moved min/max: -30 °C / +80 °C, Torsion: -25 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, VW-1, FT1
Torsion: 3D-PUR: +/- 360 °/m, 3D-C-PUR: +/- 180 °/m
Approvals: UL/CSA: cURus - 300V, 80°C
Speed: Self-supporting: max. 10 m/s, gliding: max. 5 m/s | Torsion: max.180 °/s
Acceleration: Max. 20 m/s² | Torsion: max. 60 °/s²
