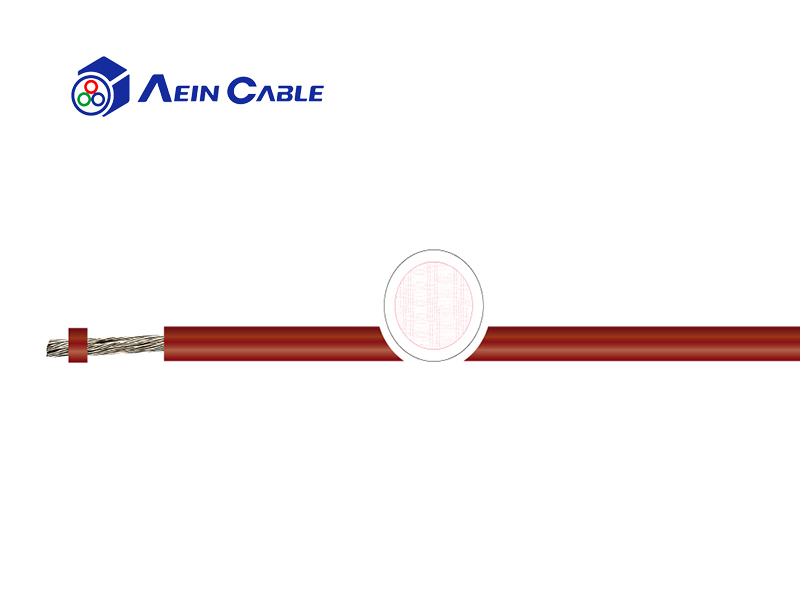

Conductor material:
|
Copper strand tinned
|
Conductor class:
|
Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
|
Core insulation:
|
Silicone
|
Core identification:
|
ZKSI: blue, HZLSI: redbrown, SIL: yellow
|
Shield3:
|
ZKSI: glass-silk braid
|
Outer sheath:
|
ZKSI: silicone
|
Sheath colour:
|
ZKSI: blue
|
Rated voltage:
|
Uo: ZKSI: 16 kV; SIL: 3,5 kV-4 kV-7,5 kV
|
Testing voltage:
|
Uo: ZKSI 20 kV; HZLSI 15 kV on 5mm Ø, 20 kV on 7mm Ø; SIL 10 kV
|
Conductor resistance:
|
At +20 °C acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
|
Current-carrying-capacity:
|
Acc. to DIN VDE, see Technical Guidelines
|
Min. bending radius fixed:
|
4 x d
|
Min. bending radius moved:
|
7,5 x d
|
Operat. temp. fixed min/max:
|
-60 °C / +180 °C; short-time: +200 °C
|
Temp. at conductor:
|
+180 °C
|
Halogen free:
|
Halogen-free acc. to VDE 0472 part 813 and IEC 60754-1
|
Burning behavior:
|
Self-extinguishing and flame-retardant VDE 0482-332-2-1 (IEC 60332-1)
|
