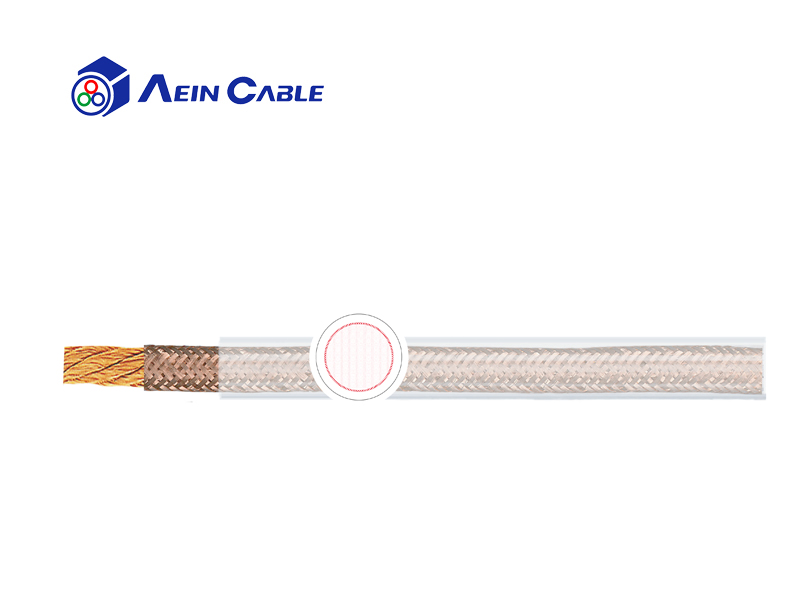

Alternative TKD ESUY Copper Special Single Core

Safety earthing cable for intended purpose of earthing where high flexibility is required e.g. on repairs of high voltage overhead lines of railways, for earthing of live parts in high voltage facilities e.g. electronic supply companies and potential equalization on machine and IT-systems.

inquiry

Product details

Product introduction

01 Product application Safety earthing cable for intended purpose of earthing where high flexibility is required e.g. on repairs of high voltage overhead lines of railways, for earthing of live parts in high voltage facilities e.g. electronic supply companies and potential equalization on machine and IT-systems.
02 Product characteristics •plain copper wires, extra fine strands
•very robust by plain copper braid over extra fine strands •free from lacquer damaging substances and silicone (during production) • cold resistant
03 Technical certification
•conform to RoHS

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Fine-stranded, 7 elements of twisted copper wires, structure see Technical Guidelines
Shield:	Copper braid
Outer sheath:	Special PVC compound
Sheath colour:	Transparent
Testing voltage:	2 kV
Insulation resistance:	Min. 20 MΩ x km
Current-carrying-capacity:	(only short-time) see VDE 0105 part 1/5.75 burn down value (1 sec.): > 300 A/mm²
Min. bending radius fixed:	10 x d
Min. bending radius moved:	12 x d
Operat. temp. fixed min/max:	-40 °C / +70 °C
Operat. temp. moved min/max:	-5 °C / +70 °C
Burning behavior:	Flame-retardant acc. to IEC 60332-1
Standard:	Similar to VDE 0682/0683 and DIN 46338/46438 ESUY
