In modern industrial automation systems, motors are everywhere — from CNC machines and robotic arms to packaging equipment and production lines.

But behind every high-performance motor system, there is a critical component that is often overlooked: the cable connecting the motor and the control system.

Many engineers ask:

"Can I use a standard motor cable instead of a servo cable?"

At first glance, servo cables and motor cables may look almost identical. Both transmit power, both connect motors, and both are available with shielding options.

However, they are designed for completely different working environments.

Choosing the wrong cable can lead to:

• Signal interference
• Unexpected machine downtime
• Reduced motor performance
• Shorter cable lifespan
• Higher maintenance costs

So, what exactly is the difference between a servo cable and a motor cable?

Let's take a closer look.

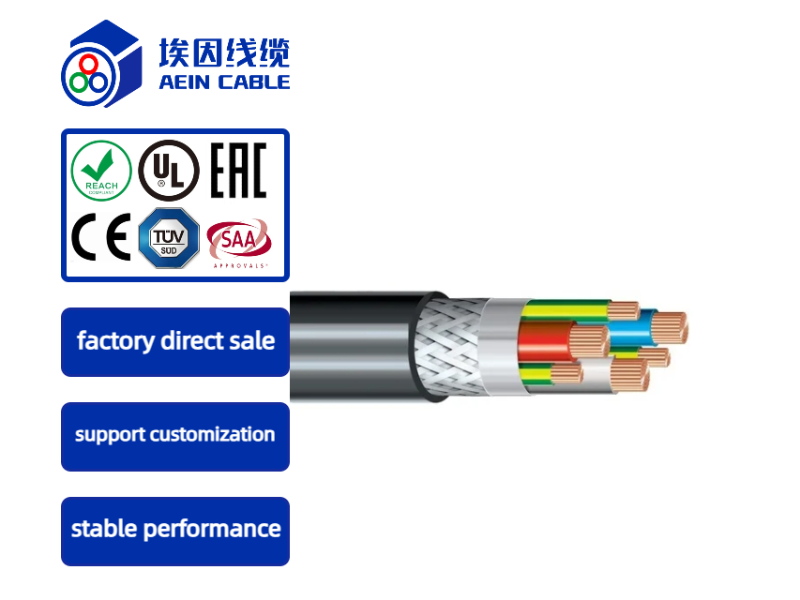

A motor cable is mainly designed to transmit electrical power from a drive or power source to an electric motor.

Its primary function is simple:

Deliver stable power safely and efficiently.

Typical applications include:

• Industrial motors
• Pumps
• Fans
• Conveyors
• General machinery

A standard motor cable usually contains:

• Conductors for power transmission
• Insulation layers
• Outer jacket protection
• Optional shielding

The main design priorities are:

✅ High voltage resistance
✅ Current carrying capability
✅ Mechanical protection
✅ Long-term durability

For applications where the motor operates in a fixed position, a standard motor cable is often sufficient.

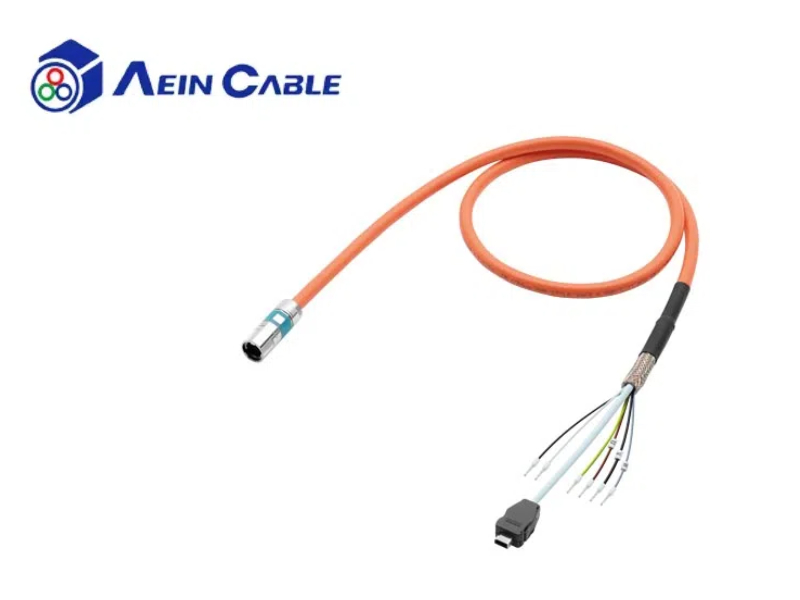

A servo cable is specifically designed for servo motor systems used in precision motion control applications.

Unlike traditional motors, servo motors require more than just power.

They need:

• Accurate feedback signals
• High-speed communication
• Stable electromagnetic performance

A typical servo cable may combine:

• Power conductors
• Brake wires
• Signal wires
• Encoder cables
• Shielding layers

Servo systems rely heavily on feedback.

For example, an encoder continuously sends information about:

• Motor position
• Speed
• Rotation direction

The servo drive uses this information to adjust motor movement in real time.

Therefore, servo cables must provide both:

Power transmission + Signal integrity

1) Signal Transmission Capability

This is the biggest difference.

A motor cable mainly carries electrical power.

A servo cable often carries:

• Power
• Encoder signals
• Control signals

Because these signals are sensitive, servo cables require better shielding and interference protection.

In high-precision automation equipment, even small electrical noise can cause:

• Position errors
• Vibration
• Reduced accuracy

2) Shielding Performance

Servo systems usually operate near:

• Frequency converters
• Servo drives
• Industrial controllers

These devices generate electromagnetic interference (EMI).

A high-quality servo cable normally includes:

• Overall shielding
• Individual pair shielding
• Copper braid shielding

This helps maintain stable communication between the motor and controller.

Motor cables may also have shielding, but the requirements are usually less demanding.

3) Flexibility and Movement Capability

Many servo motors are installed on moving equipment.

Examples:

• Robot arms
• CNC machines
• Automated production lines

The cable may experience:

• Continuous bending
• Twisting
• High-speed movement

Servo cables are often manufactured with:

• Fine-stranded copper conductors
• Flexible insulation materials
• Special jacket compounds

Some servo cables can withstand millions of bending cycles.

A standard motor cable, however, may fail quickly under continuous motion.

4) Internal Structure

A traditional motor cable usually has a simpler structure:

Power conductors → Insulation → Jacket

A servo cable may have a more complex structure:

Power cores

• Control cores
• Encoder pairs
• Shielding layers
• Protective jacket

This additional structure allows servo cables to handle complex motion control requirements.

The short answer:

Sometimes yes, but often no.

For a simple fixed motor application, a motor cable may work perfectly.

However, replacing a servo cable with a standard motor cable in a precision automation system can create serious problems.

Possible consequences include:

1. Encoder Signal Failure

Without proper shielding, encoder signals may become unstable.

The result:

• Incorrect positioning
• Machine vibration
• Reduced accuracy

2. Unexpected Downtime

A cable failure in an automated production line can stop an entire process.

The cost of downtime is usually much higher than the cost difference between cable types.

3. Shorter Service Life

A non-flexible cable installed in a moving application may experience:

• Conductor breakage
• Jacket cracking
• Shield damage

Before selecting a cable, consider these questions:

Is the motor fixed or moving?

Fixed installation:
→ Motor cable may be enough.

Continuous movement:
→ Choose servo cable or high-flex cable.

Does the system require feedback?

If your motor uses:

• Encoder feedback
• Position control
• Closed-loop control

A servo cable is usually the correct choice.

Is electromagnetic interference a concern?

For applications near:

• Servo drives
• Inverters
• Industrial controllers

A shielded servo cable provides better reliability.

A cable is not just a connection between components.

In an automation system, the cable directly affects:

• Machine accuracy
• Production efficiency
• Equipment reliability

A high-quality cable helps prevent unexpected failures and ensures stable operation over years of service.

At AEIN Cable, we focus on developing industrial cables designed for demanding environments, including:

• Servo cables
• Drag chain cables
• Robot cables
• Flexible automation cables

Our goal is to provide reliable cable solutions that help manufacturers improve system performance and reduce maintenance costs.

The difference between servo cable and motor cable is not only about appearance.

The real difference lies in:

• Signal requirements
• Shielding performance
• Mechanical flexibility
• Application environment

If your system only needs power transmission, a motor cable may be enough.

But if your application requires precision motion control, feedback communication, and continuous movement, a servo cable is the safer choice.

Choosing the right cable today can prevent costly failures tomorrow.
