What Is UL CMP Plenum Cable?

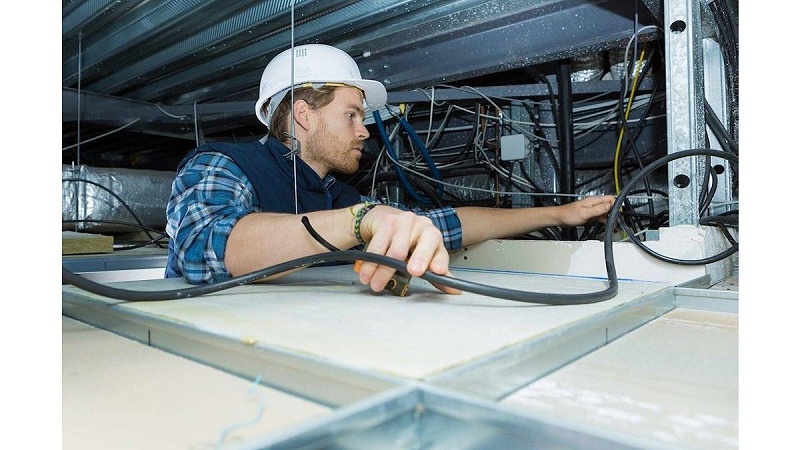

UL CMP cable, also known as Plenum Cable, is a communications cable specifically designed for installation in plenum spaces—the areas in buildings used for air circulation in heating and air-conditioning systems.

These spaces include:

• Suspended ceilings
• Raised floors
• HVAC air return areas
• Air handling spaces

Because air circulates freely through these spaces, any fire or smoke generated by cable materials can spread rapidly throughout the building.

That's why building codes require cables installed in these areas to meet strict fire safety standards.

CMP cable is the highest fire-resistance rating for communication cables under the National Electrical Code (NEC).

Why Is CMP Cable So Important?

In a fire, the biggest danger often isn't the flames—it's the smoke and toxic gases.

Standard PVC cables can produce:

❌ Dense smoke
❌ Corrosive gases
❌ Toxic fumes

UL CMP Plenum Cable is manufactured with low-smoke, flame-retardant materials that significantly reduce these hazards.

Benefits of CMP Cable

✅ Superior flame resistance
✅ Low smoke emission
✅ Reduced toxic gas generation
✅ Improved building safety
✅ Compliance with NEC requirements
✅ Suitable for high-end commercial projects

For schools, hospitals, airports, and office buildings, using CMP cable is often not optional—it's mandatory.

What Does "UL Listed" Mean?

A UL Listed CMP cable has been tested and certified by Underwriters Laboratories (UL) to meet strict safety requirements.

The cable must pass the:

NFPA 262 Steiner Tunnel Test

This test evaluates:

• Flame spread
• Smoke production
• Fire performance in plenum spaces

Only cables that pass these rigorous tests can carry the CMP designation.

When purchasing cable, always verify:

✔ UL file number
✔ Proper cable markings
✔ Certification documentation

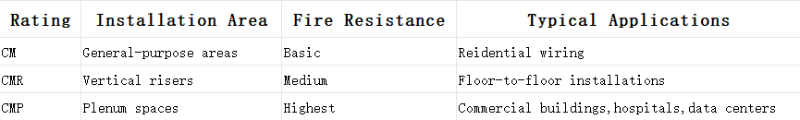

CMP vs CMR vs CM: What's the Difference?

Choosing the wrong rating can result in code violations and expensive replacements.

Important Rule:

CMP cable can replace CMR and CM cable, but CMR or CM cable cannot replace CMP cable in plenum spaces.

Where Is UL CMP Cable Used?

CMP cable is commonly installed in:

Office Buildings

Network infrastructure and structured cabling systems.

Data Centers

High-density communication systems that require maximum safety.

Hospitals

Facilities where smoke generation must be minimized.

Educational Institutions

Universities, schools, and libraries with extensive ceiling cabling.

Airports and Transportation Hubs

Buildings with strict fire safety regulations.

Government Facilities

Projects requiring certified and compliant products.

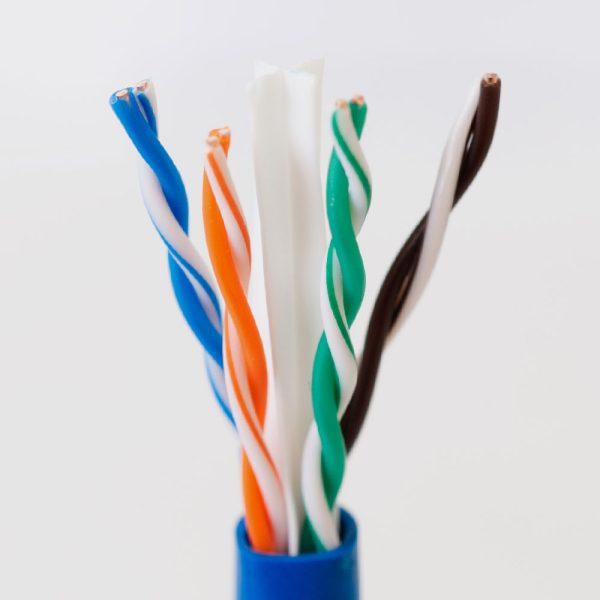

Types of UL CMP Plenum Cable

Depending on the application, CMP cables come in many varieties:

• Cat5e CMP Cable
• Cat6 CMP Cable
• Cat6A CMP Cable
• Shielded CMP Cable
• Unshielded CMP Cable
• Multi-pair Communication Cable
• Security and Alarm Plenum Cable

The right choice depends on:

• Transmission speed requirements
• Installation environment
• EMI interference conditions
• Budget considerations

How to Identify Genuine CMP Cable

Unfortunately, the market contains some products that claim to be CMP rated but lack proper certification.

Before purchasing, check for:

1. UL Markings

The cable jacket should clearly display:

• UL
• CMP
• Manufacturer name
• Product code

2. Certification Documents

Ask suppliers for:

• UL certificates
• Test reports
• Compliance documentation

3. Manufacturer Experience

An experienced manufacturer will understand:

• NEC requirements
• International standards
• Project-specific needs
• OEM customization requirements

How to Choose a Reliable CMP Cable Manufacturer

Not all cable suppliers are the same.

When evaluating a manufacturer, consider:

Quality Control

Consistent production and testing processes.

Certifications

UL, ETL, ISO9001, RoHS, and REACH compliance.

Customization Capability

Support for:

• OEM branding
• Special constructions
• Customized packaging
• Project-specific solutions

Export Experience

A supplier familiar with international markets can simplify logistics and certification requirements.

Why More Contractors Are Choosing Certified CMP Cable Suppliers

As building safety standards continue to become more stringent, contractors and distributors are paying greater attention to:

✔ Compliance
✔ Product reliability
✔ Long-term performance
✔ Technical support

Working with an experienced cable manufacturer can help reduce project risks and improve installation efficiency.

Final Thoughts

UL CMP Plenum Cable is more than just another communication cable—it's a critical component of building safety.

Whether you're designing a new office network, upgrading a data center, or sourcing cables for distribution, understanding CMP ratings can save time, money, and potential compliance issues.

At AEIN Cable, we specialize in manufacturing high-quality communication and industrial cables, including UL-certified CMP Plenum Cables, with OEM and customized solutions for global customers.

If you're looking for a reliable partner for your next project, our engineering and sales teams are always happy to discuss your requirements and help you find the right cable solution.

Have Questions About CMP Cable?

Feel free to leave a comment or contact our team to discuss your application. We'd love to help.
