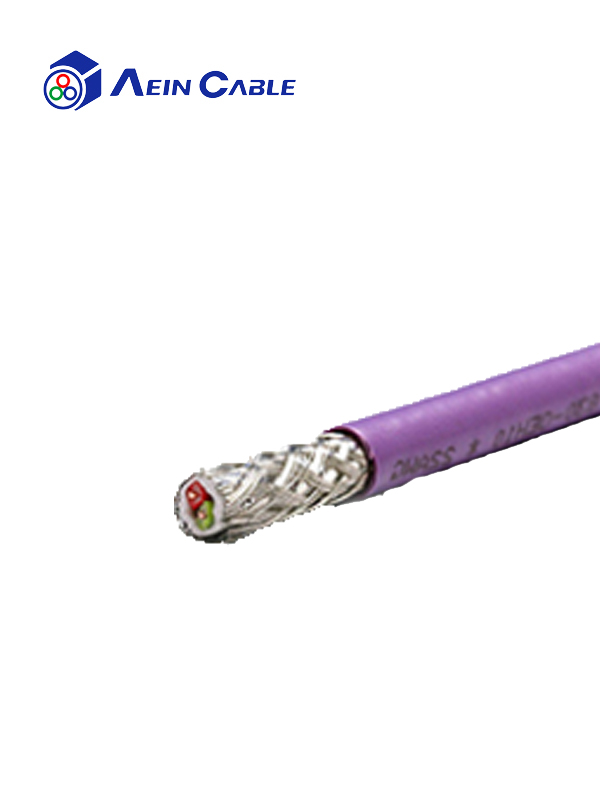

Product introduction
-
01 Product applicationThe cable is used in industrial fieldbus systems in automation and communication technology and is suitable for installation in continuous motion within a towed chain.
-
02 Product characteristics •Oil resistance
•Waterproof•Corrosion resistance
-
03 Technical certification •Conform to RoHS standard
Structural specification
Product specifications:1X2X22AWG
Conductor material:1/0.64Solid annealed copper conductor
Conductor class: acc. to IEC 60228standard
Core insulation:PEF OD:2.55mm
Core identifier: red and green
Shield:Aluminum - plastic composite tape wrapped, tinned copper wire braided shield
Inner sheath:PVC OD:5.4mm
Outer sheath:PUR OD:8.0mm
Jacket color: Cyan
Operating voltage:80V
Conductor resistance:Conform toIEC 60228standard
Electrical data
Damping per unit length
● 9.6 kHz when / Maximum value 0.0025 dB/m
● 38.4 kHz when / Maximum value 0.004 dB/m
● 4 MHz when / Maximum value 0.022 dB/m
● 16 MHz when / Maximum value
0.042 dB/m
Wave resistance
● rating 150 Ω
● 9.6 kHz when 270 Ω
● 38.4 kHz when 185 Ω
● 3 MHz ... 20 MHz when 150 Ω
Relative symmetric tolerance
● 9.6 kHz The wave resistance of time 10 %
● 38.4 kHz The wave resistance of time 10 %
● 3 MHz ... 20 MHz The wave resistance of time 10 %
Circuit resistance per unit length / Maximum value:110 mΩ/m
Shielding resistance per unit length / Maximum value:9.5 Ω/km
Capacitance per unit length / 1 kHz when 28.5 pF/m
Minimum bending radius:Fixed 5x d
Minimum bending radius: Moved 12.5 x d
Temperature range :-40 °C / +80 °C
Burning behavior:Self-extinguishing, consistentIEC 60332-1Standard, oil resistance meets IEC 60811-2-1(7X24h/90°C)
