Product introduction
-
01 Product application power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use, but no laying underground.
-
02 Product characteristics •Largely resistant to acids, alkalis and certain types of oils
•UV-resistant, halogen-free outer sheath • enables trouble-free operation of frequency converters through optimum EMC compliant shielding •
Increased power transmission with the same conductor cross section compared to the standard 2YSL(St)CY version
-
03 Technical certification •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•LABS/Silicon Free (during production)• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

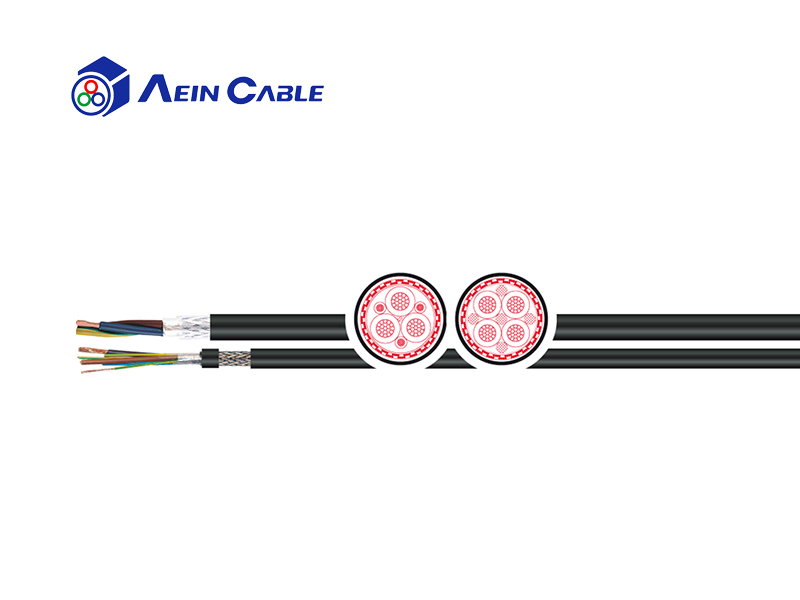

Product structure
Conductor material: bare copper wire
Conductor class: acc. to IEC 60228 cl. 5
Insulation: XLPE
Core identification: Acc. to DIN VDE 0293-308 coloured cores with GNYE
Stranding: stranding in layers
Shield: Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
Outer sheath: Halogen-free compound
Sheath color: Black, RAL 9005
Rated voltage: 0.6/1kV
Test voltage: 4kV
Conductor resistance: acc. to IEC 60228 cl. 5 standard
Insulation resistance: Min. 200 MΩ x km
Minimum bending radius (Fixed): 7.5 x d
Minimum bending radius (Moved): 15 x d
Operating temperature (Fixed): -40 °C / +80 °C
Operating temperature (Moved): IEC 60332-1-2
Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark
