Product introduction
-
01 Product application
These composite connection cables are particularly suitable for plants and facilities with appliances and electrical equipment of which electromagnetic interference fields could have an undue influence on the surroundings. These connection cables are
well suited for fixed installations and for flexible use in motive power engineering with frequency converting technology (e.g. machine and plant engineering) for medium-level mechanical loads in dry, humid and wet Locations.
-
02 Product characteristics
Nominal voltage Uo/U: 600 / 1000V
Test voltage at 50 Hz: 4000V
Temperature range in motion: -5°C till +70°C
one time / fixed: -30°C till +70°C
Operating temperature: 160°C
Bending radius one time / fixed: 7,5 x diameter
in motion: 15 x diameter
Flammability standard: EN 60332-1-2
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

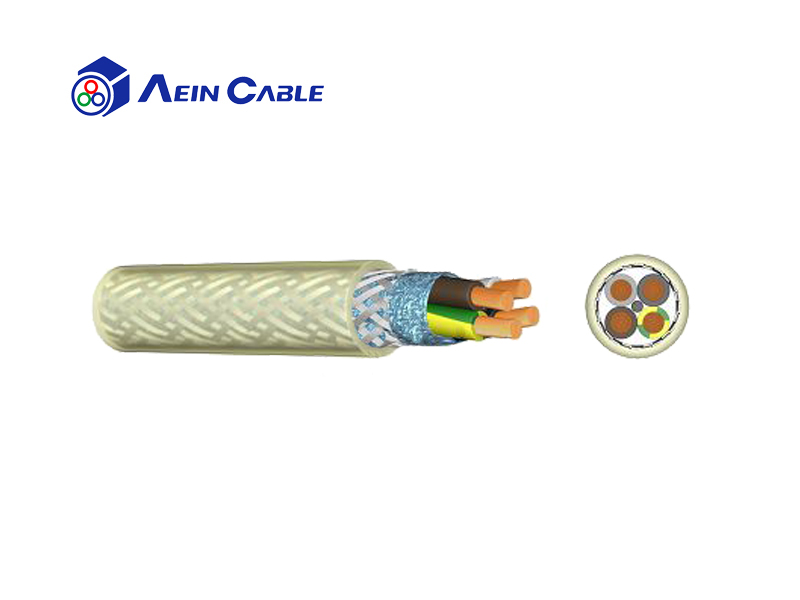

Product structure
fine-stranded bare copper
core insulation of polyethylene (PE)
layer of foil
static screen of aluminium foil
concentric screen of tinned copper wires
outer sheath of polyvinylchloride (PVC), transparent
