Product introduction
-
01 Product application
power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use (black
colour), but no laying underground.
-
02 Product characteristics
• largely resistant to acids, bases and specified types of oil
• max. perm. current carrying capacity at 30 ° C ambient temperature.
• black version with UV-resistant outer sheath
• enables trouble-free operation of frequency converters
through optimum EMC compliant shielding
-
03 Technical certification •conform to RoHS,
•conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

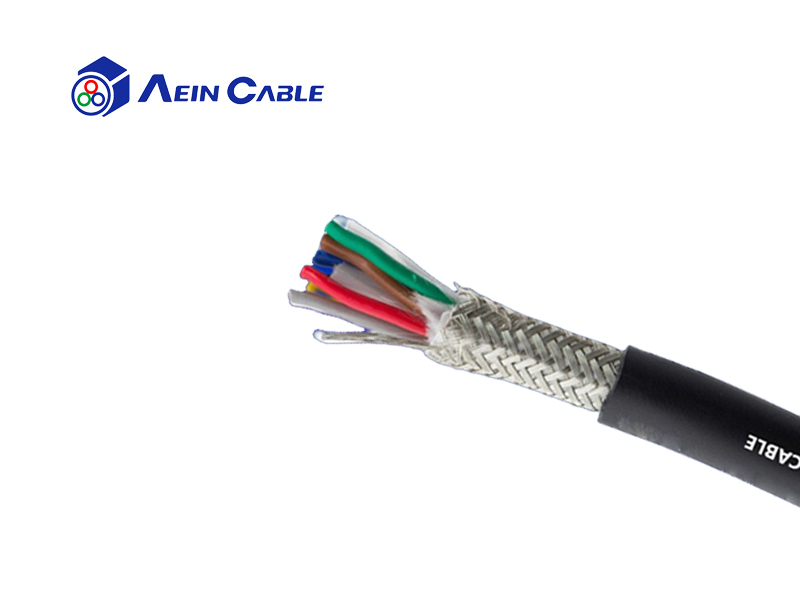

Product structure
Conductor material: bare copper strand
Conductor class: acc. to IEC 60228 cl. 5
Core insulation: PE
Stranding: stranded in layers
Shield: Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
Outer sheath: PVC
Outer sheath color: Transparent, DB-version: black
Rated voltage: Uo/U: 0,6/1 kV
Test voltage: Uo/U: 4kV
Min. bending radius fixed up to 12 mm Ø: 5 x d; up to 20 mm Ø: 7,5 x d; > 20 mm Ø: 10 x d
Min. bending radius moved up to 12 mm Ø: 10 x d; up to 20 mm Ø: 15 x d; > 20 mm Ø: 20 x d
Operat. temp. fixed min/max -40 °C / +80 °C
Operat. temp. moved min/max - 5 °C / +70 °C
Temp. at conductor +70 °C in operation; +160 °C in case of short-circuit
Burning behavior: self-extinguishing & flame-retardant acc.to IEC 60332-1
Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark
