Product introduction
-
01 Product application
power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms.Versions with black outer sheath (DB - direct burial) are additionally suitable for outdoor use and for direct burial.
-
02 Product characteristics
• largely resistant to acids, bases and specified types of oil
• max. perm. current carrying capacity at 30 °C ambient temperature
• low operating capacity, low coupling resistance
• black version: UV-resistant, cold flexible, outdoor and
direct burial use PVC outer
jacket
• enables trouble-free operation of frequency converters through optimum EMC compliant shielding
• low capacitance enables longer cable lengths between motor and frequency converter
-
03 Technical certification • conform to RoHS, conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
• LABS-/silicone-free (during production)
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: bare copper strand
Conductor class: acc. to IEC 60228 cl. 5
Core insulation: PP

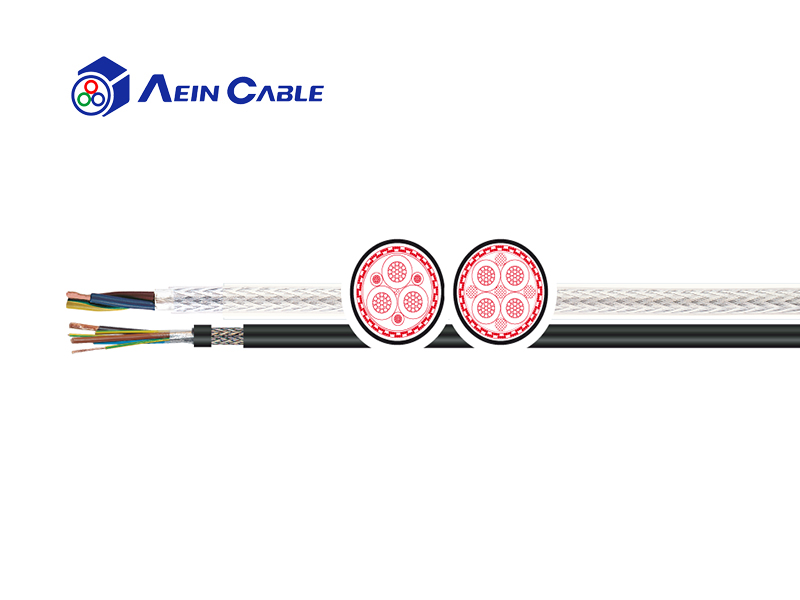

Core identification: 4-core version: cores stranded in one layer | 3+3-core version: cores stranded concentrically, protective conductor divided into three, positioned in the crotches
Shield: Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
Outer sheath: PVC
Outer sheath color: Transparent, DB-version: black
Rated voltage: IEC 0.6/1KV
Test voltage: 4kV
Minimum bending radius (Fixed): 12.5 x d
Operat. temp. fixed min/max transparent: -40°C / +80°C; black: IEC: -40°C / +90°C, UL/CSA: -40°C / +80°C
Burning behavior self-extinguishing & flame-retardant acc.to IEC 60332-1, FT1, VW-1
Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark
