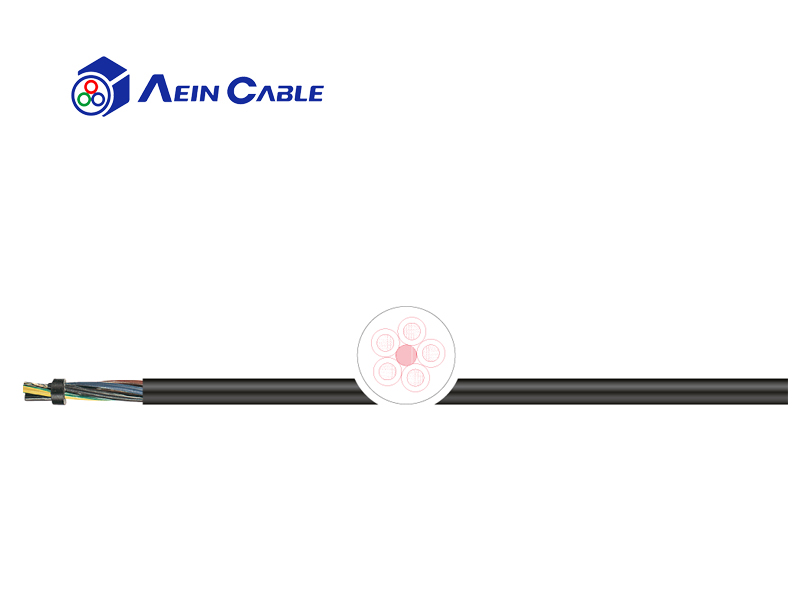

Alternative TKD H05RN-F Rubber-sheathed Flexible Cable

Alternative TKD H05RN-F Rubber-sheathed Flexible Cable

Rubber-sheathed cable for medium mechanical requirements. For connecting of electrical hand-held units in household and office. Suitable in dry, humid, wet rooms and for outdoor use.

inquiry
  • Product details
Product introduction
  • 01 Product application Rubber-sheathed cable for medium mechanical requirements. For connecting of electrical hand-held units in household and office. Suitable in dry, humid, wet rooms and for outdoor use.
  • 02 Product characteristics •free from lacquer damaging substances and silicone (during production)
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material: Bare or tinned copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 and IEC 60228 cl. 5
Core insulation: Rubber compound
Core identification: Acc. to DIN VDE 0293-308 coloured with or without GNYE
Stranding: Cores stranded in layers
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -25 °C / +60 °C
Operat. temp. moved min/max: -25 °C / +60 °C
Temp. at conductor: +60 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Approvals: type certification acc. to EN 50525-2-21
Keywords: alternative tkd control cable
