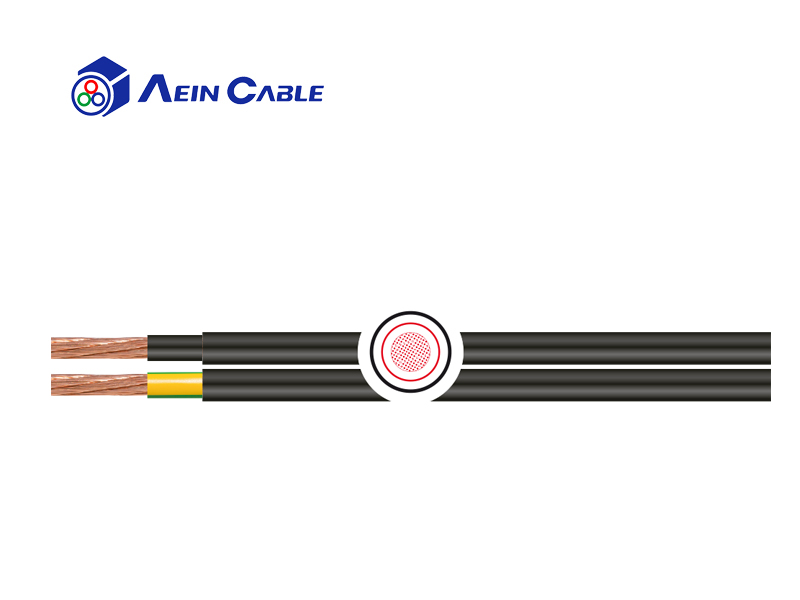

Alternative TKD KAWEFLEX 5178 SC SK-PVC 0,6/1kV Cables for Servo-drives

As single core, double sheathed motor connection cable for highly flexible applications (e.g. cable drag chains, gantry robots, pick&place units, conveyor systems, machine tools, automatic conveyor systems) manufacturing systems, test systems, etc.) for normal electrical and mechanical requirements. Suitable for use in dry, humid and wet environments as well as outdoors.

inquiry

Product details

Product introduction

01 Product application As single core, double sheathed motor connection cable for highly flexible applications (e.g. cable drag chains, gantry robots, pick&place units, conveyor systems, machine tools, automatic conveyor systems) manufacturing systems, test systems, etc.) for normal electrical and mechanical requirements. Suitable for use in dry, humid and wet environments as well as outdoors.
02 Product characteristics •low adhesion, silicone-free •UV-resistant (version with black outer jacket) •largely resistant to greases, coolants and lubricants
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Super fine wires acc. to IEC 60228 cl. 6
Core insulation:	PVC
Core identification:	Black resp. gnye
Outer sheath:	PVC
Sheath colour:	Black, RAL 9005
Rated voltage:	IEC: 600/1.000 V, UL: 1.000 V
Testing voltage:	4 kV
Conductor resistance:	At +20 °C acc. to IEC 60228 cl. 6
Min. bending radius fixed:	5 x d
Min. bending radius moved:	10 x d
Operat. temp. fixed min/max:	-40 °C / +90 °C
Operat. temp. moved min/max:	-5 °C / +90 °C
Burning behavior:	Self-extinguishing & flame-retardant acc.to IEC 60332-1, UL: VW-1, CSA: FT-1
Resistant to oil:	Acc. to ISO 6722, EN 60811-404 (only mineral oil), EN 50290-2-22 TM54
Approvals:	UL/CSA - cURus 1.000V, 90°C
Speed:	Max. 120 m/min
Acceleration:	Max. 20 m/s²
