Product introduction
-
01 Product application Cables can be used for power, control and connection cables in power facilities, for lossless data and signal transmission, fixed laying and mobile applications, without tensile stress, without prescribed cable wiring. More durable in harsh environments with mechanical stress; Resistant to all kinds of lubricants containing mineral oil components, diluted acids, alkaline water solutions and other chemical media; It has a wide temperature range and is suitable for harsh climates. Internal wiring and external interconnection of electronic equipment,With oil resistance, wear resistance, acid and alkali resistance, waterproof, UV resistance.
-
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils,
coolants and lubricants
-
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

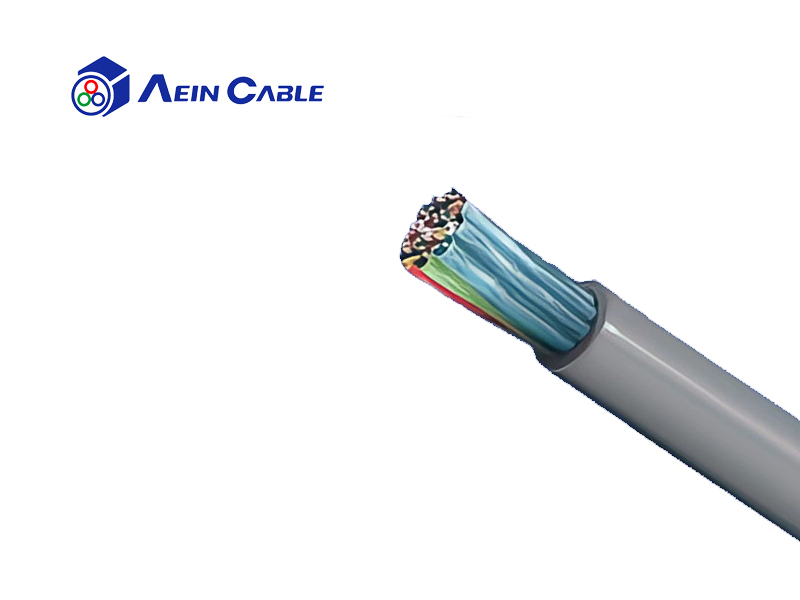

Product structure
Conductor material: Bare copper or tinned copper
Conductor class: acc. to UL758 Standard,ASTM B3 or ASTM B33 standard.VDE 0295 5 Conductor pt. 4 or. IEC60228 5 Conductor pt. 4
Core insulation:PVC,XLPE,TPE optional
Current carrying capacity: acc. to DIN VDE 0293
Rated voltage:1000V
Test voltage:3000V
Conductor resistance:UL1581 ASTM class C
Minimum bending radius fixed:4x d
Minimum bending radius flexible:7.5x d
Operat. temp. fixed min/max: -40°C/60°C
Burning behavior: Self extinguishing and flame retardant FT2
Approvals:UL&CUL:UL1032,UL10914,UL11122,UL3237,UL3820,UL
21320
CE: If needed CE certification or halogen-free requirements shall be indicated separately
Product identification: E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN
