Conductor material: bare copper wire

Conductor class: According to DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor

Insulation :PVC-J-105-003(2105-LF)

Core identifier :< 0.5mm ²; 5 core and below using color separation, in line with n.DIN 47100, more than 5 core multi-core cable using core wire color separation, white ink dot distinction; ≥0.5mm²; Color separation is used for 5-core and below, including yellow/green wire, in line with n.DIN 47100, multi-core cables with more than 5-core black core wire, white ink numbered distinction (customized according to special requirements)

Power cable: black sheath with white printing U/L1;V/L2;W/L3;GN/PE

Cable: Core wire <10: core wires are twisted in layers with short pitch; core wire 211: core wires are twisted twice

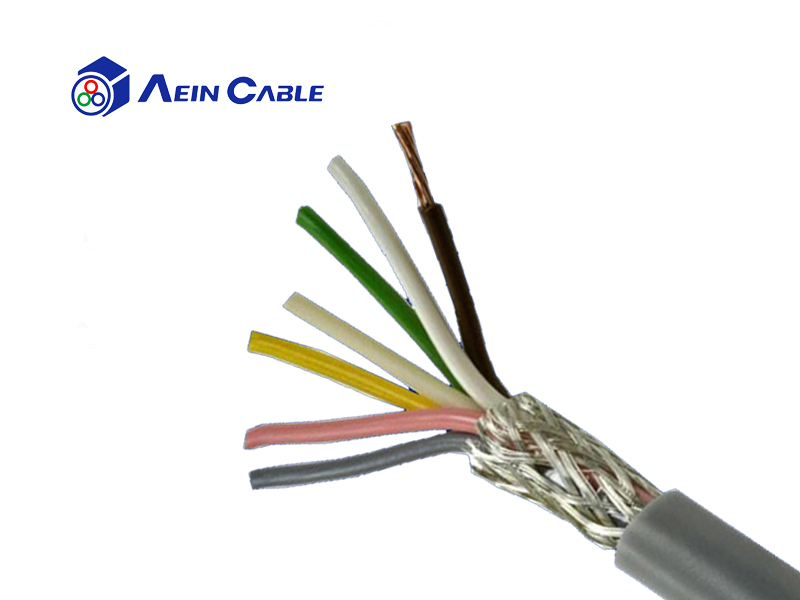

Shielding layer: tinned copper wire braid shielding shielding density >80%

Outer sheath:  DQPVC-H-90-003(9039-LF) low wear, anti-cutting, low adhesion

Jacket color: black (RAL 9005); gray (RAL 7001); orange (RAL2004); green (RAL 6018)

Rated voltage :0.6/1KV, 300/500V, 300/300V

Test voltage :3500V: 2000V: 1500V

Conductor resistance: +20℃ in accordance with DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor

Small bending radius: fixed 4 x d

Small bending radius: Move 7.5 x d

Moving speed: Self-supporting: max.8 m/s, coasting: max.5 m/s

Conductor length: Self-supporting/coasting max.400 m

Acceleration :max.100 m/s²

Bending cycle :<35 times /Min, life >8 million times

Temperature rating is fixed :-40°C/+100°C (UL: 90°C)

Temperature rating shift :-25°C/+100°C (UL: 90°C)

Smoldering grade: According to IEC 60332-1-2,cable flame test, FT1, FT2

Certification :CE; UL/CUL  If UL certification and halogen-free requirements are required, please note them separately

Print identification    Aein bei ke   SHANGHAI  AEIN  WIRE ＆ CABLE  CO.,LTD Model number specification voltage FLEXIBLE CONNECTION   OIL RESISTANT ABRASION RESISTANT  CE Towing chain mark  Meter mark
