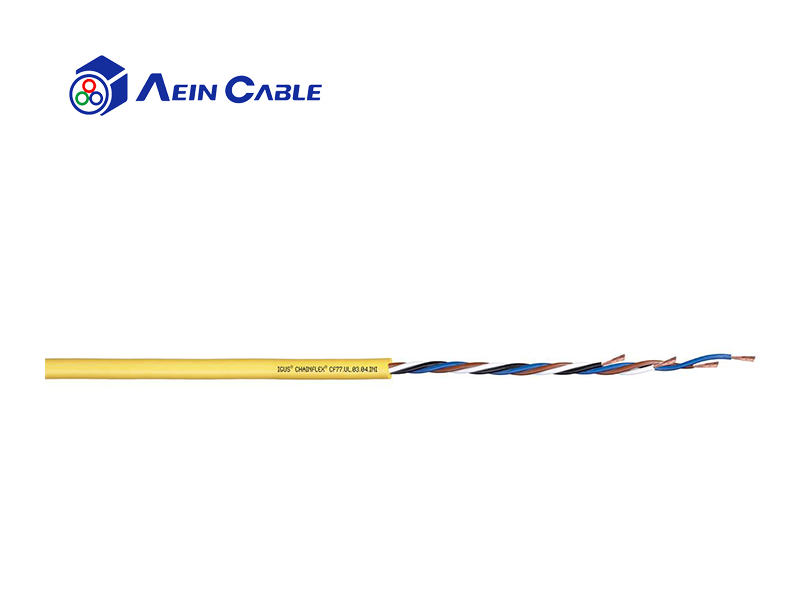

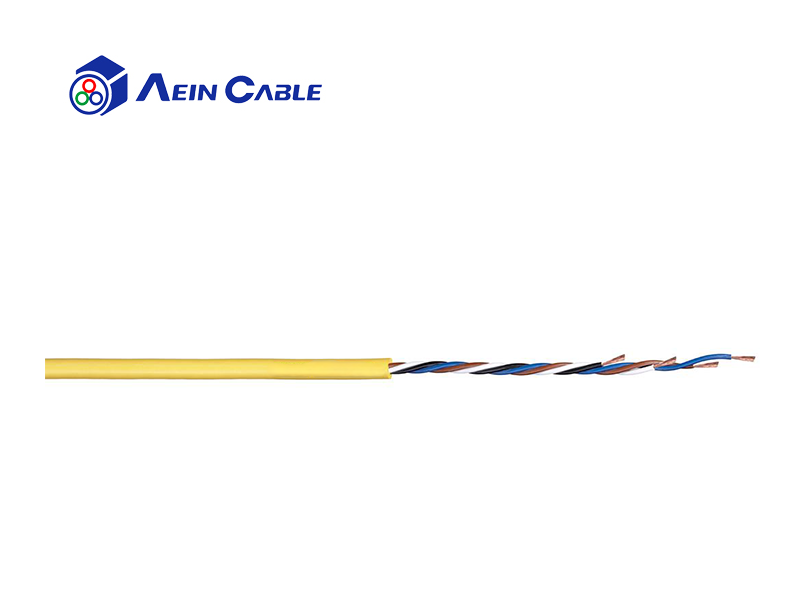

Alternative IGUS Control Cable CF77-UL-D

Alternative IGUS Control Cable CF77-UL-D

Typical application areas

For heavy duty applications with torsion movements

 Almost unlimited resistance to oil, also with bio-oils

Indoor and outdoor applications with average solar radiation

Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications

Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas



inquiry
  • Product details
Product introduction
  • 01 Product application

        • For heavy duty applications with torsion movements
          • Almost unlimited resistance to oil, also with bio-oils
          • Indoor and outdoor applications with average solar radiation
          • Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications
          • Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    •Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

6.8 x d

Min. bend radius, e-chain®

1.3 inch (64.0 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

1.0 inch (25.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

0.8 inch (20.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. twisted

180 °/m

a max.twisted

60 °/s²

Length of travel

Travels up to 328 ft (100 m)


Torsion ± 180°, with 1 m cable length
Cable structure

Conductor

Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)


Conductor insulation
 Mechanically high-quality TPE mixture

Overall shield Torsion-resistant tinned braided copper shield. Coverage approx.80 % optical.


Unshielded

Yes


Outer jacket Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Inner jacket
TPE mixture suited to the requirements in e-chains®


Jacket color

Window grey (similar to RAL 7040)
