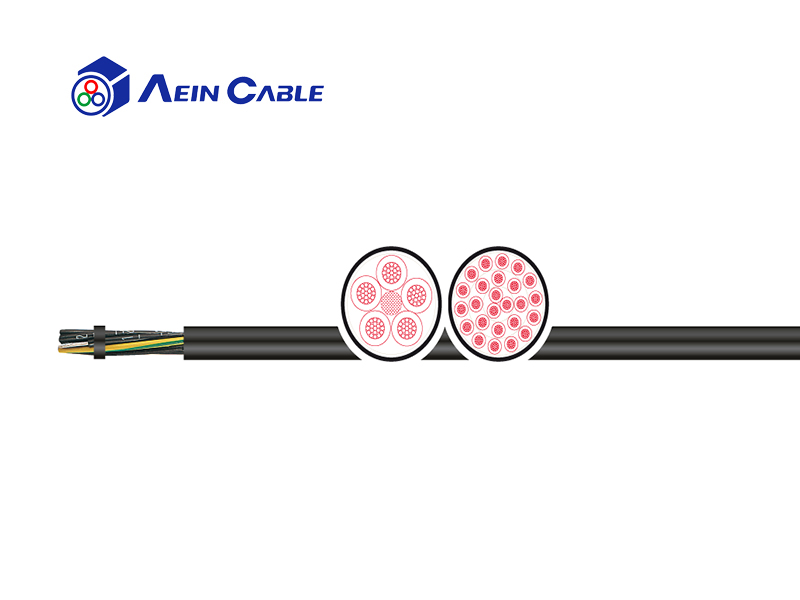

Alternative TKD JZ/OZ ARCTIC +UV BLACK Power Cable

Alternative TKD JZ/OZ ARCTIC +UV BLACK Power Cable

as UV- and cold resistant power, control and connecting cable in electrical facilities (e.g. in plant and machine building, in heating and air-conditioning technology or in frozen goods plants, cold stores), for fixed laying and flexible applications, without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use but no laying underground

inquiry
  • Product details
Product introduction
  • 01 Product application as UV- and cold resistant power, control and connecting cable in electrical facilities (e.g. in plant and machine building, in heating and air-conditioning technology or in frozen goods plants, cold stores), for fixed laying and flexible applications, without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use but no laying underground
  • 02 Product characteristics•largely resistant to acids, bases and specified types of oil •increased cold resistant acc. to IEC 60811-1-4
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: PVC, cold resistant
Core identification: Acc. to DIN VDE 0293 black cores with white numerals with or without GNYE
Stranding: Stranded in layers
Outer sheath: PVC, cold resistant
Sheath colour: Black, RAL 9005
Rated voltage: 300/500 V
Testing voltage: 3 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Min. bending radius fixed: 4 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -60 °C / +80 °C
Operat. temp. moved min/max: -40 °C / +70 °C
Temp. at conductor: +70 °C in operation; +140 °C in case of short-circuit
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1

Keywords: alternative tkd control cable
