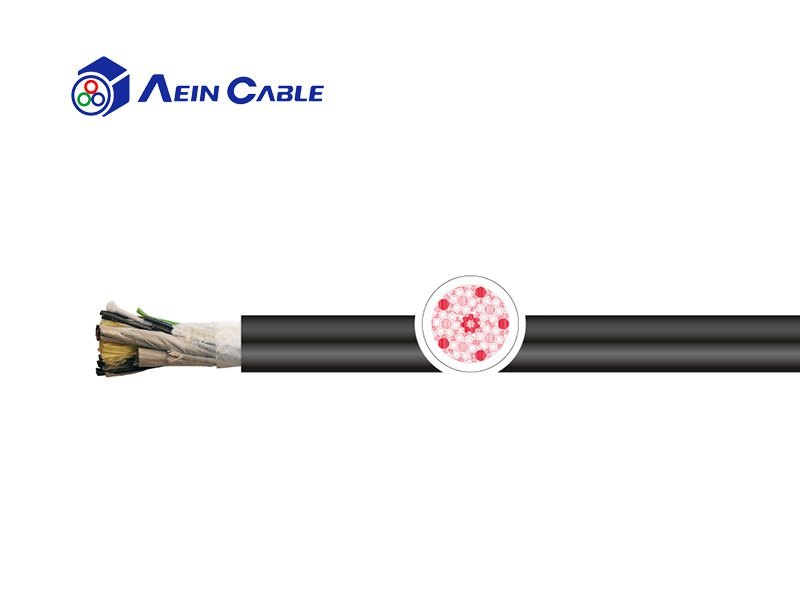

Alternative TKD SPREADERFLEX 3GSLTOE Installation Cable

Alternative TKD SPREADERFLEX 3GSLTOE Installation Cable

heat and coldness resistant power, control and connecting cable in electrical facilities, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.

inquiry
  • Product details
Product introduction
  • 01 Product application

    feed cable for load lifting devices such as spreader with high mechanical stress only in vertical basket operation in dry, humid and wet rooms and for outdoor use.

  • 02 Product characteristics•free from lacquer damaging substances and silicone (during production) •lead ball cords for improved basket operation
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand, extremly fine stranded
Core insulation: Rubber compound
Core identification: White with black numerals with GNYE
Stranding: Cores stranded in bundles
Overall stranding: Bundles stranded in layers
Outer sheath: PUR
Sheath colour: Black
Rated voltage: Uo/U: 0,6 / 1 kV
Testing voltage: 3,5 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -50 °C / +80 °C
Operat. temp. moved min/max: -40 °C / +80 °C
Temp. at conductor: +90 °C
Resistant to oil: Acc. to EN 60811-404
Suspension height: Max. 50 m








Keywords: alternative tkd control cable
