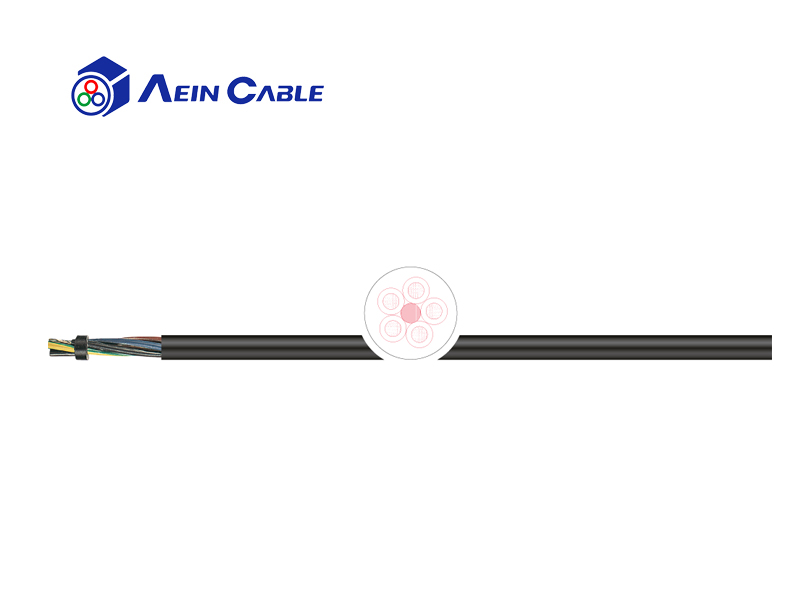

Alternative TKD H07RN-F Heavy Rubber-sheathed Flexible Cable

For connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and argicultural plants and on construction lots, also for permant use in water (no drinking water). Also suitable for fixed laying e.g. on-wall in provisional buildings, for directly laying on modules of hoisting devices, machinery etc.

inquiry

Product details

Product introduction

01 Product application For connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and argicultural plants and on construction lots, also for permant use in water (no drinking water). Also suitable for fixed laying e.g. on-wall in provisional buildings, for directly laying on modules of hoisting devices, machinery etc.
02 Product characteristics •UV- and ozone resistant •good resistant to abraison, grease, lubricants and specified types of oil•halogen-free (LSOH) and flame retardant
•heat resistant up to +90 °C, moved cold resistant down to -40 °C
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	Rubber compound
Core identification:	Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE
Stranding:	Cores stranded in layers
Outer sheath:	Halogen-free rubber-compound (LSOH)
Sheath colour:	Black
Rated voltage:	Uo/U: 450/750 V
Testing voltage:	2,5 kV
Current-carrying-capacity:	Acc. to DIN VDE 0298-4
Min. bending radius fixed:	4 x d
Min. bending radius moved:	6 x d
Operat. temp. fixed min/max:	-50 °C / +90 °C
Operat. temp. moved min/max:	-40 °C / +90 °C
Temp. at conductor:	+90 °C
Halogen free:	Acc. to EN 60754-1 and EN 60754-2
Smoke density:	Acc. to DIN EN 61034-2
Burning behavior:	Acc. to IEC 60332-1-2
Resistant to oil:	Acc. to EN 60811-404
Tensile strength:	Max. 15 N / mm²
