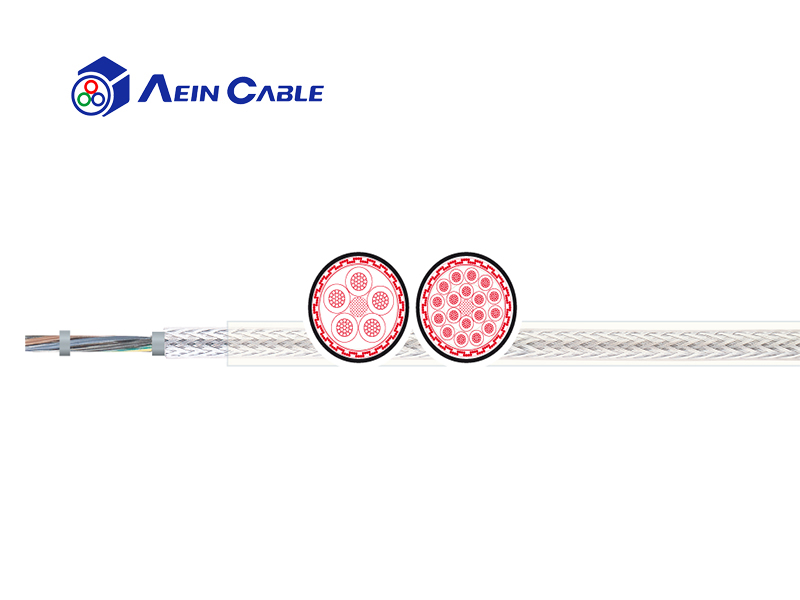

Alternative TKD JB/OB-YSY Installation Cable

Alternative TKD JB/OB-YSY Installation Cable

Installation cable for fixed laying on-wall and in-wall, in dry, humid and wet rooms, in brickwork and concrete exceptional in cast, vibrated or rammed concrete.

inquiry
  • Product details
Product introduction
  • 01 Product application power, control and connecting cable in electrical facilities, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
  • 02 Product characteristics•4 kV testing voltage•no storage outdoors or in wet rooms
    •JZ/OZ: 300/500 V, JB/OB: 0,6/1 kV (from 25 mm²)
    •largely resistant to acids, bases and specified types of oil •triple protection for high mechanical requirements and magnetic shield (oxidation-proofed steel wire braid and additional inner sheath)
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: PVC
Core identification: JZ/OZ: acc. to DIN VDE 0293 black cores with white numerals; JB/OB: coloured - up to 5 cores acc. to DIN 293-308, from 6 cores TKD colour code (see technical guideline) G: with GNYE
Stranding: Stranded in layers
Inner sheath material: PVC
Shield3: Steel wire braid zinced
Outer sheath: PVC
Sheath colour: Transparent
Rated voltage: Uo/U - JZ/OZ: 300/500 V || JB/OB: 0,6/1 kV
Testing voltage: 4 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, see technical Guidelines
Min. bending radius fixed: 6 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -30 °C / +80 °C
Operat. temp. moved min/max: -15 °C / +70 °C
Temp. at conductor: +70 °C in operation; +150 °C in case of short-circuit
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1
Keywords: alternative tkd control cable
