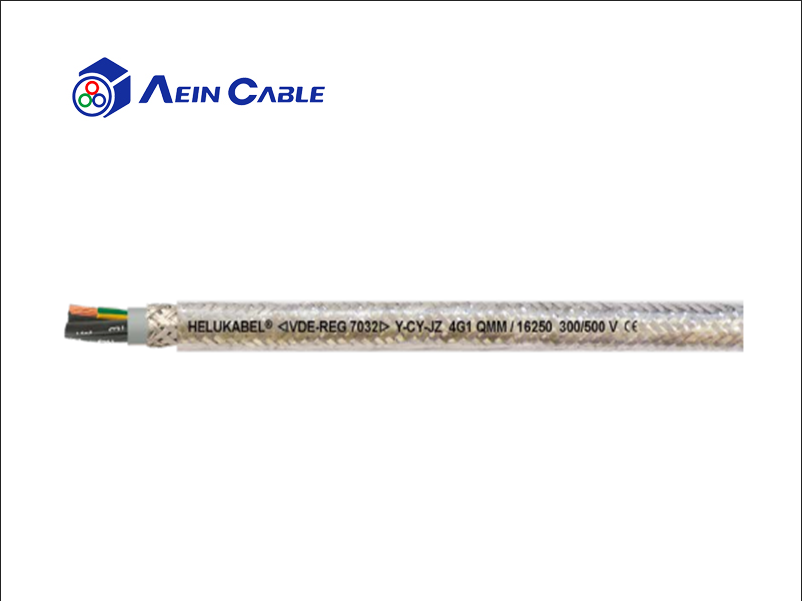

Alternative Helukabel Y-CY-JZ / Y-CY-OZ Double Sheathed Screened Cable

Alternative Helukabel Y-CY-JZ / Y-CY-OZ Double Sheathed Screened Cable

Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors. Used as a connection and control cable in machine andplant construction, in machine tools, production lines, assembly lines and conveyor belts. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors. Used as a connection and control cable in machine and plant construction, in machine tools, production lines, assembly lines and conveyor belts. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.


  • 02 Product characteristics                                                                                                                                    • largely resistant to: oil, for details, see "Technical Information"  • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
  • 03 Technical certification

    • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2             • certifications and approvals: EAC VDE-Reg.-No. 7032, valid for temperature range up to +70°C

Product structure
Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 Core insulation: PVC, compound type Z 7225

Identification Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits

Protective conductor starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)

Stranding
 Cores stranded in layers with optimal lay lengths

 Screen

Screen: braided screen of tinned copper wires, approx. coverage 85%


Outer jacket Outer sheath: PVC


Jacket color

 Transparent


Length marking in meters
