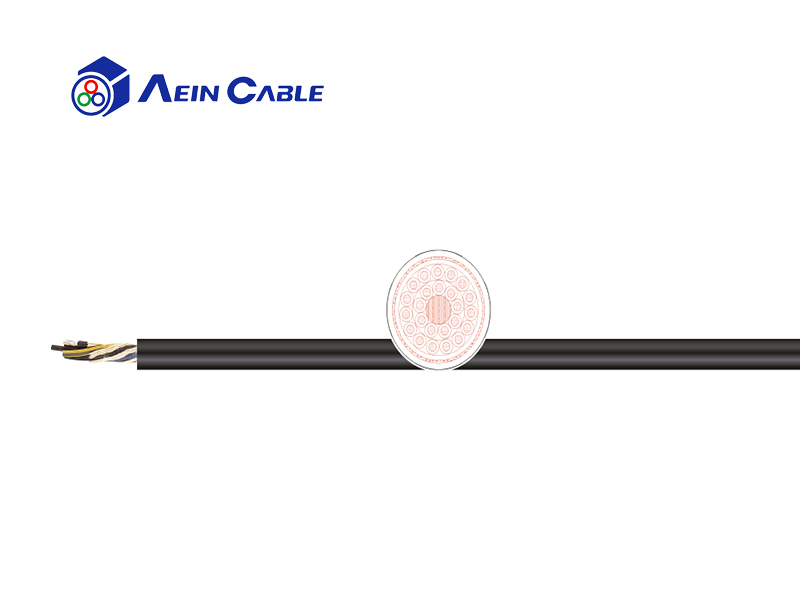

Alternative TKD (K) NSHTÖU, (N)SHTÖU Installation Cable

Alternative TKD (K) NSHTÖU, (N)SHTÖU Installation Cable

reeling cable for winding operation, especially with tensile stress at the same time and/or torsional stress and/or compulsory cable direction. Suitable for dry, humid and wet rooms, for outdoor use and also on construction sites, in comercial and agricultural plants. For travelling up to 120 m/min.

inquiry
  • Product details
Product introduction
  • 01 Product application

    reeling cable for winding operation, especially with tensile stress at the same time and/or torsional stress and/or compulsory cable direction. Suitable for dry, humid and wet rooms, for outdoor use and also on construction sites, in comercial and agricultural plants. For travelling up to 120 m/min.

  • 02 Product characteristics•free from lacquer damaging substances and silicone (during production) •for travelling speed up to 120 m / min
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Tinned copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: Rubber compound
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with GNYE
Stranding: Cores stranded in layers
Inner sheath material: Special rubber-compound
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 2,5 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -25 °C / +80 °C
Temp. at conductor: +90 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Resistant to oil: Acc. to EN60811-404
Tensile strength: Tensile strength max. 20 N / mm²




Keywords: alternative tkd control cable
