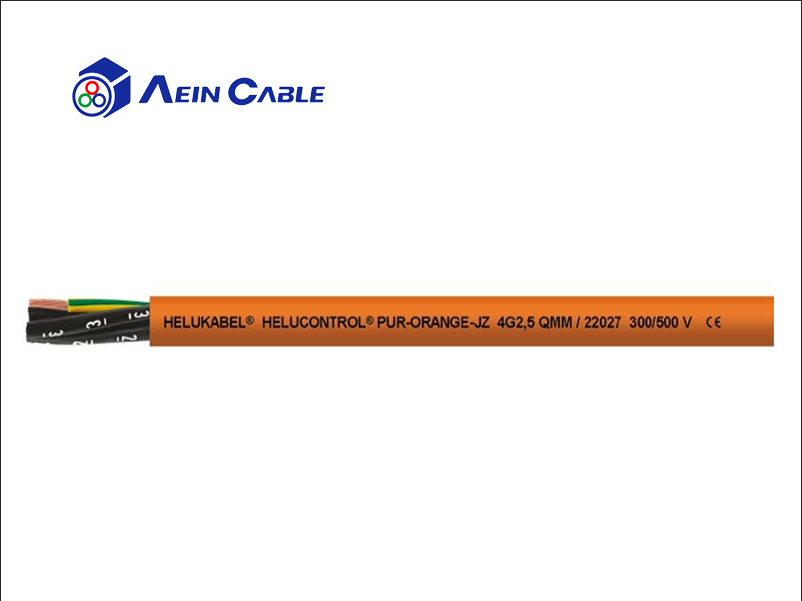

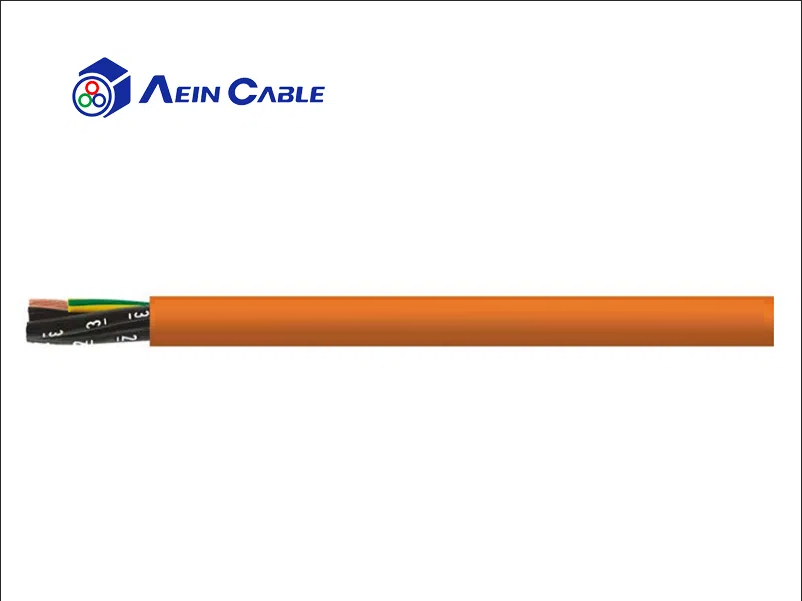

Alternative Helukabel Control Cable PUR-ORANGE-JZ/PUR-ORANGE-OZ

Alternative Helukabel Control Cable PUR-ORANGE-JZ/PUR-ORANGE-OZ

Robust control and connection cable characterised by high oil resistance, abrasion resistance and notch toughness. Areas of application are machine and tool construction, shipyards, rolling mills and steelworks, construction sites, oil drilling andcoal mining. Also often used in plants as a hand tool cable or extension cable.



inquiry
  • Product details
Product introduction
  • 01 Product application

        • For Robust control and connection cable characterised by high oil resistance, abrasion resistance and notch toughness. Areas of application are machine and tool construction, shipyards, rolling mills and steelworks, construction sites, oil drilling and coal mining. Also often used in plants as a hand tool cable or extension cable.


  • 02 Product characteristics •resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
    • highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
    •for outdoor use
    •the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • 03 Technical certification

    •oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404

    • UV-resistant acc. to DIN EN ISO 4892-2

    •weather-resistant acc. to DIN EN ISO 4892-2

Product structure
Dynamic information

Min. bend radius, flexible

flexible 7.5 x Outer-Ø

Min. bend radius, fixed

flexible 4 x Outer-Ø

Temperature, flexible

flexible -15°C to +80°C

Temperature, fixed

fixed -40°C to +80°C

Nominal voltage

AC U0/U 300/500 V

Test voltage core/core

3000V

Breakdown voltage

6000V

Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 PVC in alignment with DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)

Identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits


Protective conductor

starting with 3 cores, G = with protective conductor GN-YE (JZ), x = without protective conductor (OZ)


Inner jacket PVC

Outer jacket Special grade of full polyurethane acc. to DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU)

Stranding
Cores stranded with optimal lay lengths


Jacket color

orange (RAL 2003)


Length marking in meters
