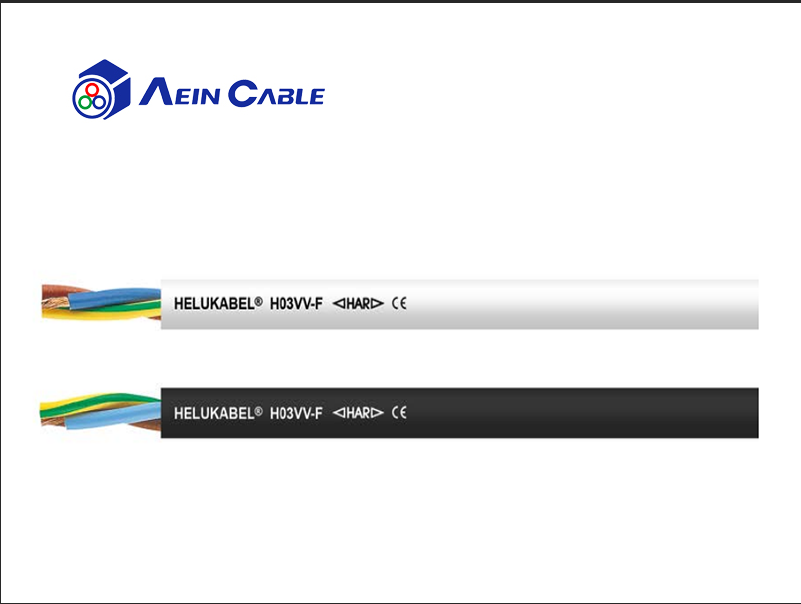

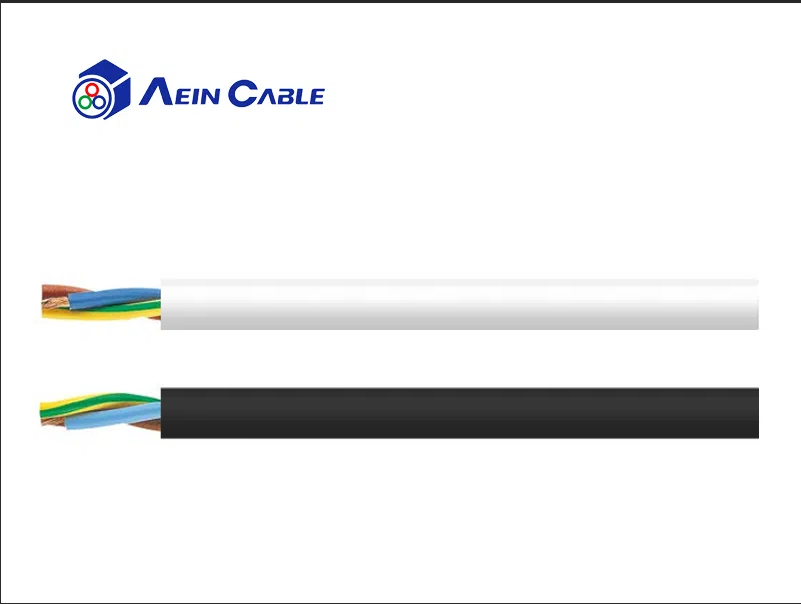

Alternative Helukabel H03VV-F / 03VV-F Flexible Number Coded Cable

Alternative Helukabel H03VV-F / 03VV-F Flexible Number Coded Cable

Used for households and offices, for appliances and applications with light wear, e.g. radios, table and floor lamps, office machines.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • Used for households and offices, for appliances and applications with light wear, e.g. radios, table and floor lamps, office machines.


  • 02 Product characteristics• the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • 03 Technical certification

    • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

Product structure
Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)

Identification
 Core identification acc. to DIN VDE 0293-308, 2 - 5 core(s): colour coded 6 - 7 core(s): black cores with consecutive labeling in white digits

Protective conductor

starting with 3 cores, G = with protective conductor GN-YE, in the outer layer,  X = without protective conductor (OB)


Outer jacket PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)

Length marking in meters
