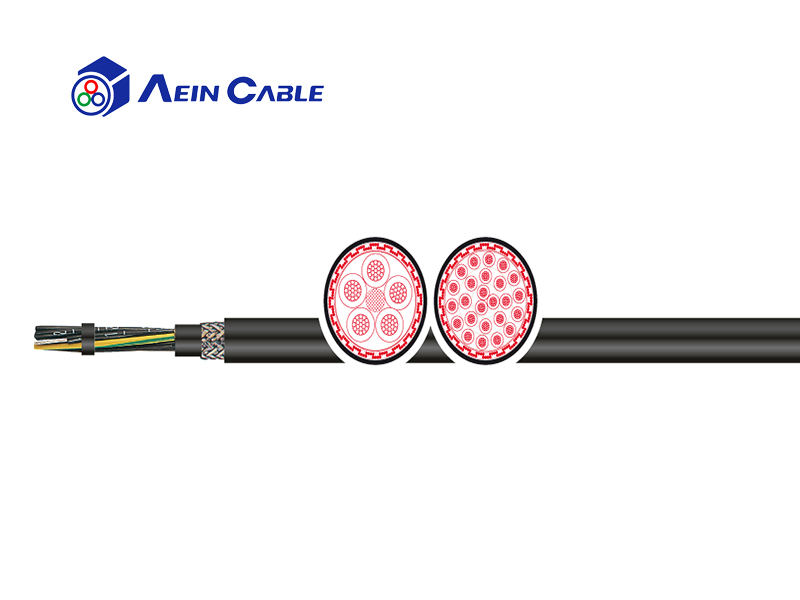

Alternative TKD OZ-CYö 1.000 V Installation Cable

Alternative TKD OZ-CYö 1.000 V Installation Cable

screened power, control and connecting cable in electrical facilities when increased mineral oil resistance is required. For trouble-free data and signal transmission at fixed laying and flexible applications, without tensile stress and without cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection and no laying underground.

inquiry
  • Product details
Product introduction
  • 01 Product application screened power, control and connecting cable in electrical facilities when increased mineral oil resistance is required. For trouble-free data and signal transmission at fixed laying and flexible applications, without tensile stress and without cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection and no laying underground.
  • 02 Product characteristics•increased oil resistant and largely resistant to acids and bases •improved behaviour in case of fire (acc. to IEC 60332-3-24 (Cat. C), CEI 20-22 II 00 and NBN C30-004 Cat. F2, CSA FT1)
    •6 kV testing voltage
    •LABS-/silicone-free (during production)•recommended for EMC-applications
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 class 5
Core insulation: PVC
Core identification: Acc. to DIN VDE 0293 black cores with white numerals with or without GNGE
Stranding: Stranded in layers
Shield3: Copper braid tinnned, optical coverage 85% +/- 5%
Outer sheath: PVC
Sheath colour: Grey, RAL 7001
Rated voltage: UL: 1.000 V; IEC: 450/750 V
Testing voltage: 6 kV
Conductor resistance: Acc. to IEC 60228 class 5
Insulation resistance: Min. 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Min. bending radius fixed: 6 x d
Min. bending radius moved: 20 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +80 °C
Burning behavior: Self-extinguishing acc. to IEC 60332-1, reduced fire propagation and flame retardant acc. to IEC 60332-3-24, CEI 20-22 II and NBN C30-004 Cat. F2, CSA FT1



Keywords: alternative tkd control cable
