Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

1.8 inch (45.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

1.4 inch (36.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

0.9 inch (22.5 mm)

Temperature, e-chain® min.

-31°F (-35 °C)

Temperature, e-chain® max.

212 °F (100 °C)

Temperature, flexible

-13 °F to +176 °F

Temperature, fixed

-67 °F to +212°F

v max. unsupported

33 ft/s (10 m/s)

a max.

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 1312 ft and more(400 m and more)

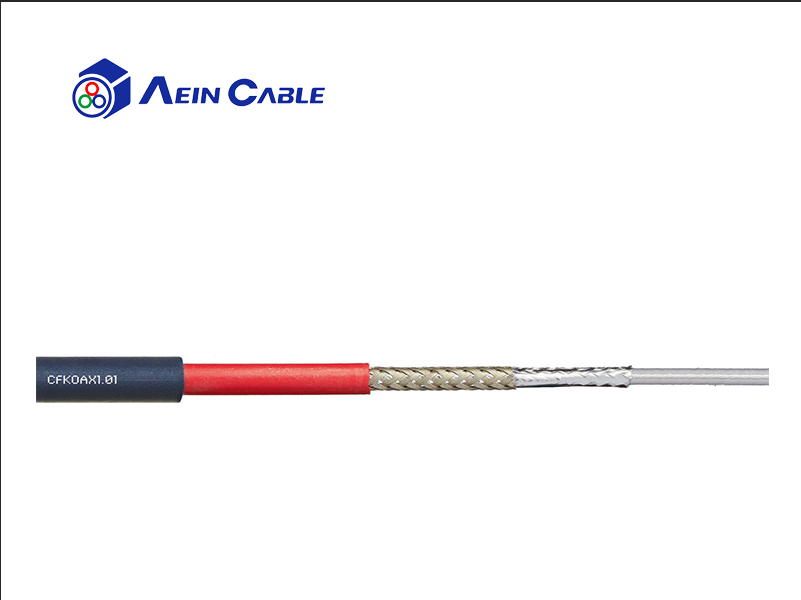

Conductor

Multi-wire; adapted in single-wire diameter and pitch length to suit the requirements in e-chains®

Conductor insulation

Special FEP-isolating mixture

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Element jacket

TPE mixture adapted to suit the requirements in e-chains®.

Jacket color

Steel blue (similar to RAL 5011)
