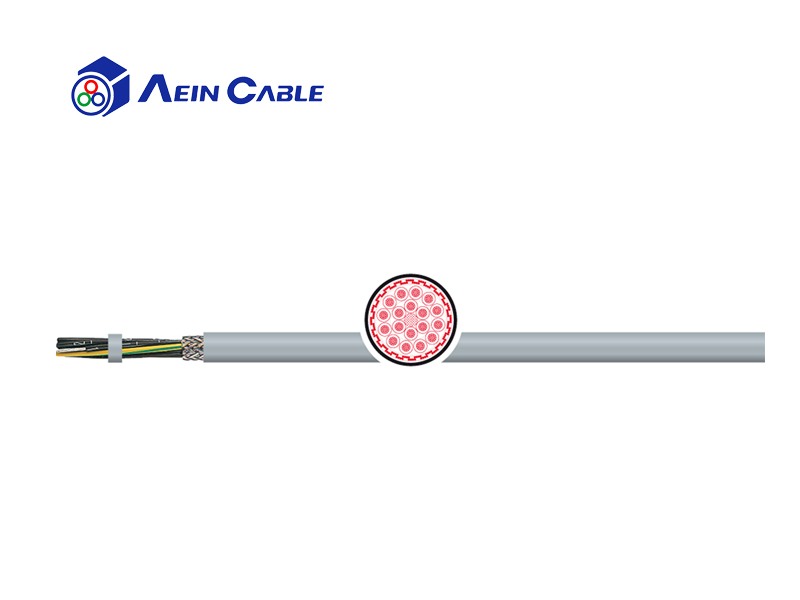

Alternative TKD 2-NORM TRAY-CY TC-ER MTW GREY

Increased oil-resistant control and power supply cables for use in cable trays or cable channels, especially for plant & machinery destined for the North American Market. For medium mechnical stresses, for fixed or flexible installation where free movement is required without tensile stress and without forced guidance systems, in dry, damp and wet interiors (incl. water-oil mixtures). TC-ER (Tray Cable - Exposed Run) approval open wiring between cable tray and industrial machines/plants acc. NEC 336.10(7)

inquiry

Product details

Product introduction

01 Product application Increased oil-resistant control and power supply cables for use in cable trays or cable channels, especially for plant & machinery destined for the North American Market. For medium mechnical stresses, for fixed or flexible installation where free movement is required without tensile stress and without forced guidance systems, in dry, damp and wet interiors (incl. water-oil mixtures). TC-ER (Tray Cable - Exposed Run) approval open wiring between cable tray and industrial machines/plants acc. NEC 336.10(7)
02 Product characteristics •increased resistance to oil by special PVC outer sheath, largely resistant to acids and bases •oil-resistant acc. to UL OIL RES I // water-resistant acc. to UL wet approval 75°C •due to UL/CSA approval up to 600 V resp. 1000 V parallel laying with other cables with identical current voltage is permitted
•machine tools compliant with UL (Machine Tool Wire)
03 Technical certification
•conform to RoHS // conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•UL listed acc. to UL1277+1063 & UL/CSA recognized acc. to UL 10012+2587

•conform to NFPA 79 2007 wiring norms and NEC 336.10 (7) Class1,Div.2 in acc. to NEC "National Electric Code" Art. 336, 392, 501

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to IEC 60228 cl. 5, UL 83 standard
Core insulation:	PVC
Core identification:	Acc. to DIN VDE 0293 black cores with white numerals with GNYE from 3 cores
Stranding:	Stranded in layers
Shield:	Copper braid tinned, coverage approx. 85%
Outer sheath:	PVC
Sheath colour:	Grey, RAL 7001
Rated voltage:	600 V (TC und MTW); as of production date january 2017: 1000 V (WTTC & AWM); 0,6/1 kV IEC
Testing voltage:	6 kV
Conductor resistance:	Acc. to IEC 60228 cl. 5
Min. bending radius fixed:	6 x d
Min. bending radius moved:	20 x d
Operat. temp. fixed min/max:	-40 °C / +90 °C
Operat. temp. moved min/max:	-5 °C / +90 °C
Burning behavior:	Flame-retardant acc. to IEC 60332-1, IEC 60332-3A and UL category FT4/IEEE
Resistant to oil:	UL 1277 and UL 1063 (oil-resistant acc. to UL OIL RES I and water-resistant, UL wet approval 75 °C)
Standard:	UL 1277, UL 1063 (MTW), NEC 336.10 (7) class1, Div. 2 in acc. to NEC Art. 336, 392, 501
Approvals:	UL listed acc. to UL 1277 and 1063 - UL/CSA recognized acc. to UL 10012 and 2587

Keywords: alternative tkd control cable
