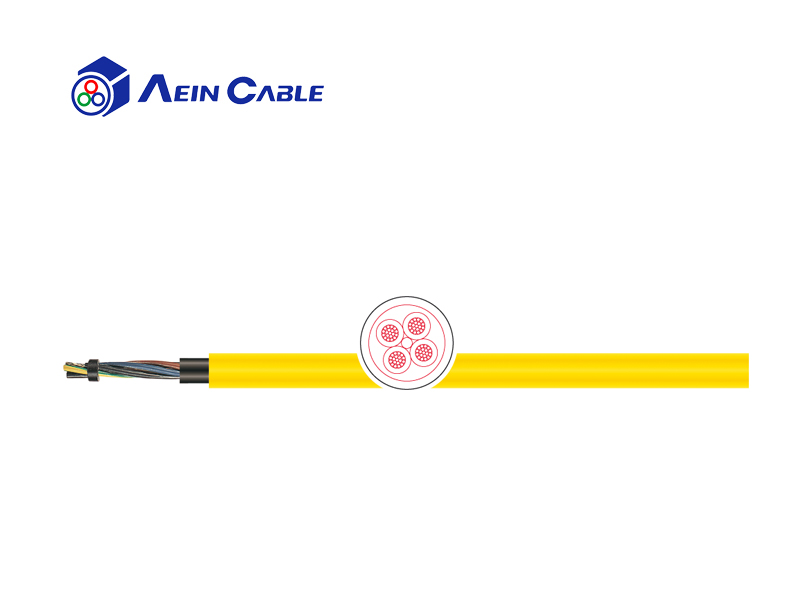

Alternative TKD NSSHÖU Heavy Rubber-sheathed Slexible Cable

For connecting of mobile units and machines with very high mechanical requirements in dry and humid rooms, for outdoor use and in explosive areas. Especially in mining and industries, in quarries and on construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, in conveyor facilities and machinery.

inquiry

Product details

Product introduction

01 Product application For connecting of mobile units and machines with very high mechanical requirements in dry and humid rooms, for outdoor use and in explosive areas. Especially in mining and industries, in quarries and on construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, in conveyor facilities and machinery.
02 Product characteristics•free from lacquer damaging substances and silicone (during production) •UV resistant
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Tinned copper strands
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	Rubber compound
Core identification:	Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE
Stranding:	Cores stranded in layers
Inner sheath material:	Special rubber-compound
Inner sheath colour:	Black (other colours are possible)
Outer sheath:	Special rubber-compound
Sheath colour:	Yellow
Rated voltage:	Uo/U: 0,6/1 kV
Testing voltage:	3 kV
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed:	Acc. to DIN VDE 0298 part 3
Min. bending radius moved:	Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max:	-40 °C / +80 °C
Operat. temp. moved min/max:	-25 °C / +80 °C
Temp. at conductor:	+90 °C
Burning behavior:	Self-extinguishing and flame retardant acc. to IEC 60332-1-2
Resistant to oil:	Acc. to EN 60811-404
Standard:	Acc. to DIN VDE 0250 part 812
