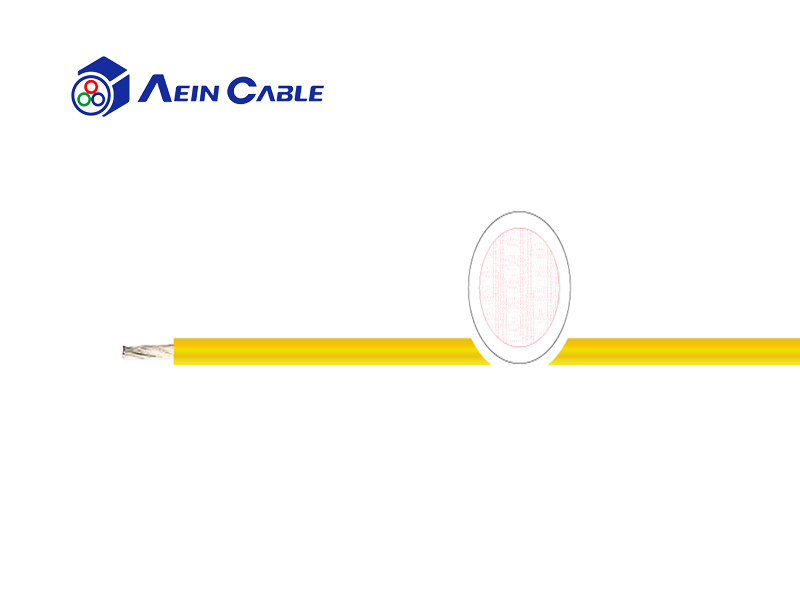

Alternative TKD THERM-205-FEP-EA Installation Cable

Alternative TKD THERM-205-FEP-EA Installation Cable

heat and coldness resistant single core for use where warmness and coldness directly act on cables

inquiry
  • Product details
Product introduction
  • 01 Product application

    heat and coldness resistant single core for use where warmness and coldness directly act on cables

  • 02 Product characteristics•high resistance to chemicals and dissolvers •nearly frequency independent dielectric characteristics •flame-retardant
    •high breakdown strength and high abrasion resistance•high elongation and high tear strength •FEP is resistant to ozone, oxygene, sea water and weather-proofed
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Copper strand tinned or silvered
Conductor class: Fine-stranded similar to IEC 60228 see table right side
Core insulation: FEP
Core identification: Different colours
Rated voltage: Typ KT: 250 V; Typ K: 600 V; Typ KK: 1 kV
Testing voltage: Typ KT: 2,5 kV; Typ K: 3,4 kV; Typ KK: 5 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 5
Insulation resistance: Min. 1,5 GΩ x km
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: 4 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -100 °C / +205 °C; short-time: +230 °C (when using adequate conductor materials)
Temp. at conductor: Cu-vz: +180 °C; Cu-vs: +200 °C
