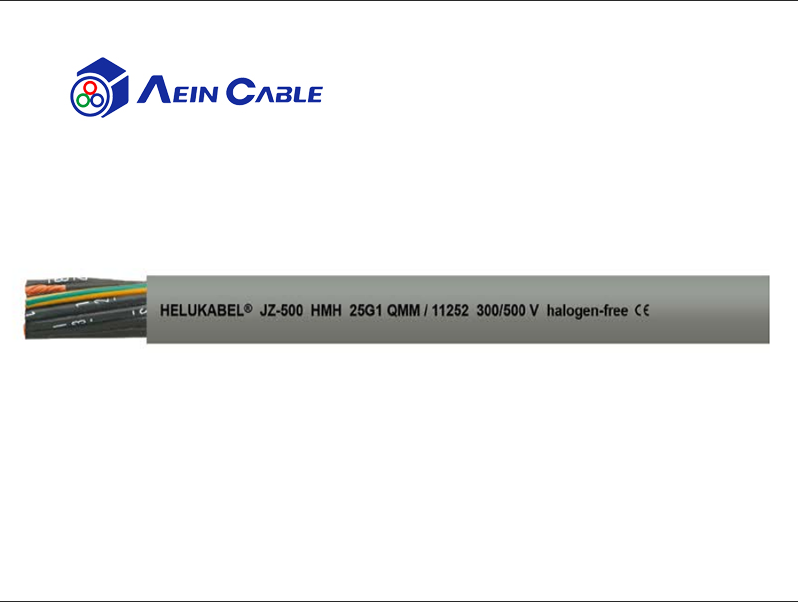

Alternative Helukabel Flame Retardant Cable JZ-500 HMH / OZ-500 HMH

Alternative Helukabel Flame Retardant Cable JZ-500 HMH / OZ-500 HMH

Control and connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation andflexible applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations and on plaster.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • Control and connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation and flexible applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations and on plaster.
  • 02 Product characteristics • resistant to: oil • halogen free
  • • the materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wettting properties of lacquers
  • 03 Technical certification

    •halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1

    • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

    • bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24

Product structure
Dynamic information

Min. bend radius, flexible

flexible 12.5 x Outer-Ø

Min. bend radius, fixed

flexible 4 x Outer-Ø

Temperature range

flexible -25°C to +70°C fixed -40°C to +70°C

Nominal voltage

AC U0/U 300/500 V

Test voltage core/core

4000 V

Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 Halogen-free polymer acc. to DIN VDE 0207-363- 7 / DIN EN 50363-7 (compound type TI6)

Identification Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits

Outer jacket halogen-free polymer acc. to DIN VDE 0207-363-8 / DIN EN 50363-8 (compound type TM7)

Screen Foil wrapping, braided screen of tinned copper wires, approx. coverage 85%

Stranding
Cores stranded in layers with optimal lay lengths


Jacket color

grey (RAL 7001)


Length marking in meters
