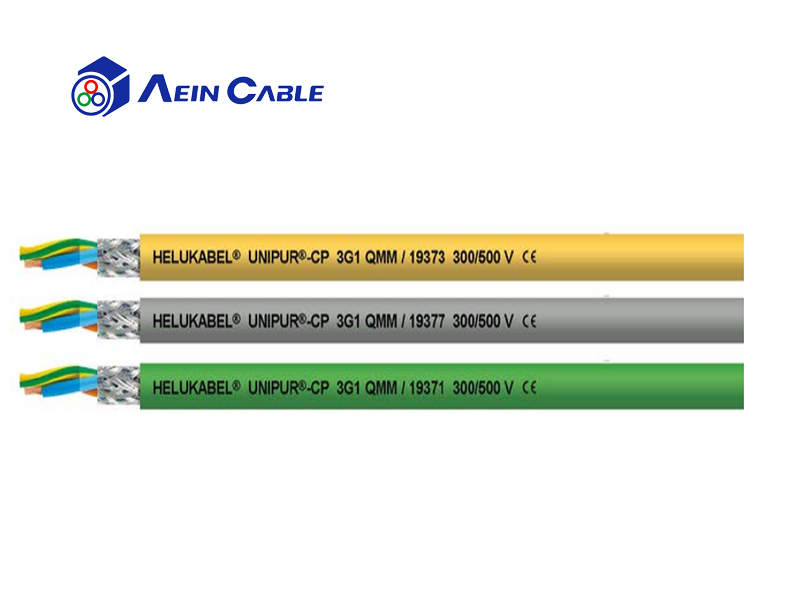

Alternative Helukabel Tear Resistant Control Cable UNIPUR-CP

Alternative Helukabel Tear Resistant Control Cable UNIPUR-CP

Robust, flexible, screened cable with good abrasion, wear resistance and high pressure resistance for use in dry, damp and wet rooms, as well as outdoors. EMC = Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all round large contact area of the copper braiding. 1.5-16 mm²: When installed in pipes or similar closed systems, the cable is permitted for use up to and including 1000 V alternating voltage or 750 V direct voltage to earth.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • Robust, flexible, screened cable with good abrasion, wear resistance and high pressure resistance for use in dry, damp and wet rooms, as well as outdoors. EMC = Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all round large contact area of the copper braiding. 1.5-16 mm²: When installed in pipes or similar closed systems, the cable is permitted for use up to and including 1000 V alternating voltage or 750 V direct voltage to earth.
  • 02 Product characteristics • resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater  • highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion   •  the materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wettting properties of lacquers
  • 03 Technical certification

    •oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404

    • UV-resistant acc. to DIN EN ISO 4892-2

    •weather-resistant acc. to DIN EN ISO 4892-2

Product structure
Dynamic information

Min. bend radius, flexible

flexible 12.5 x Outer-Ø

Min. bend radius, fixed

flexible 7.5 x Outer-Ø

Temperature range

flexible -40°C to +90°C

Nominal voltage

0.5 - 1 mm²: AC U0/U 300/500 V 1.5 - 16 mm²: AC U0/U 450/750 V

Test voltage core/core

3000 V


Coupling resistancev
 at 30 MHz, approx. 250 Ohm/ km
Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 TPE

Identification Core identification acc. to DIN VDE 0293-308, 2 - 5 core(s): colour coded 6 - 41 core(s): black cores with consecutive labeling in white digits

Outer jacket Special grade of full polyurethane in alignment with DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU)

Screen Foil wrapping, braided screen of tinned copper wires, approx. coverage 85%

Stranding
Cores stranded in layers with optimal lay lengths


Jacket color

see table


Length marking in meters
