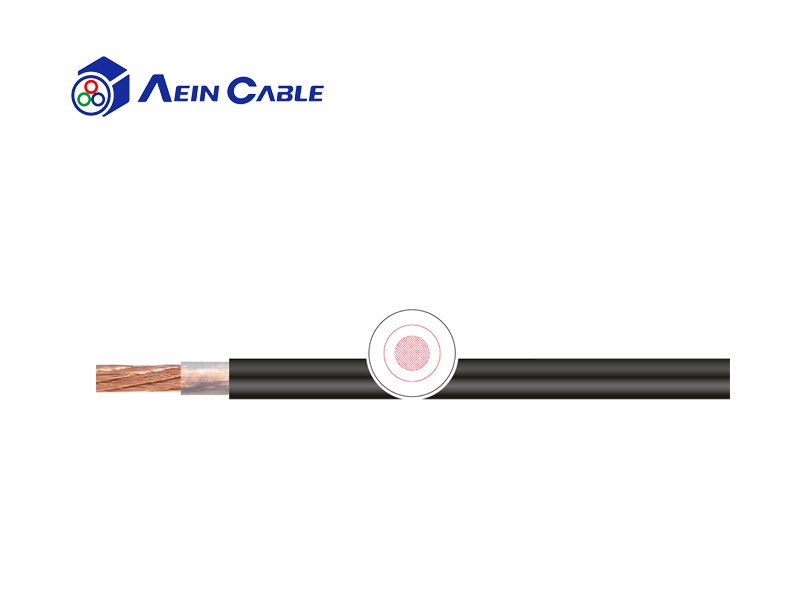

Alternative TKD KAWEFLEX Allround 7510 SK-TPE Motor Cable

Alternative TKD KAWEFLEX Allround 7510 SK-TPE Motor Cable

Flexible power cable for high electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.

inquiry
  • Product details
Product introduction
  • 01 Product application Flexible power cable for high electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.
  • 02 Product characteristics •halogen-free, flame-retardant, low abrasion, resistant to hydrolysis and microbe •resistant to oil acc. to DIN EN 60811-404 (only mineral oil)
    •silicone-free
    •UV-resistant
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

    • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper bundle strand
Conductor class: Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: TPE
Core identification: Nature
Outer sheath: TPE
Sheath colour: Black (RAL 9005)
Rated voltage: 600/1.000 V
Testing voltage: 4.000 V
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max: -40 °C / +90 °C
Burning behavior: Acc. to IEC 60332-1, cable flame test, FT1
Approvals: UL/CSA - cURus 80 °C, 1.000 V
Speed: Self-supporting: max. 10 m/s, gliding: 6 m/s
Acceleration: Max. 100 m/s²

Keywords: alternative tkd control cable
