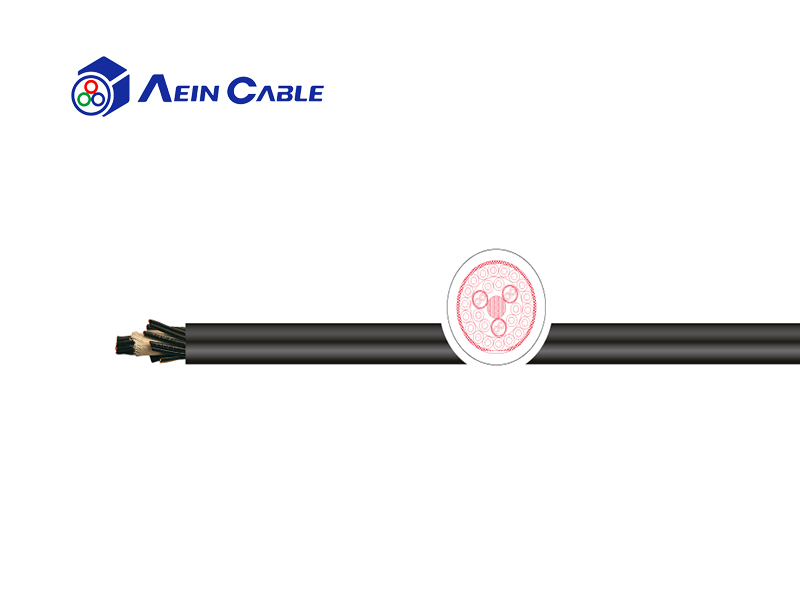

Alternative TKD K9YSTFU11Y Cable

Alternative TKD K9YSTFU11Y Cable

halogen-free lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.

inquiry
  • Product details
Product introduction
  • 01 Product application halogen-free lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
  • 02 Product characteristics•K2YSTFU11Y / K9YSTFU11Y: shielded elements as pairs
    • free from lacquer damaging substances and silicone (during production)
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: Special thermoplastic compound
Core identification: Acc. to VDE 0293 black with white numerals with GNYE, 3 x (2 x 0,5) DIN 47100
Stranding: Stranded in pairs, cores stranded in layers
Shield: K2YSTFU11Y / K9YSTFU11Y: (2X0,5)C: tinned copper braid, coverage approx. 75 %
Shield3: K9YSTCU11Y: tinned copper braid, coverage approx. 85 %
Outer sheath: PUR
Sheath colour: Black, RAL 9005
Rated voltage: > 0,5 mm² = 300 V; > 1,0 mm² = Uo/U 300/500 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 15 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: -30 °C / +70 °C
Halogen free: Acc. to IEC 60754-1
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-2-2
Suspension height: See table
Standard: Similar to DIN VDE 0282


Keywords: alternative tkd control cable
