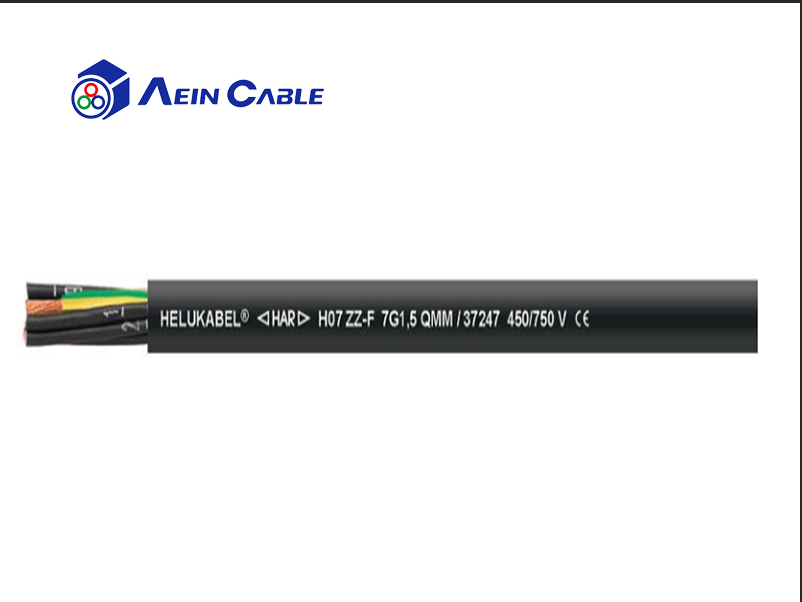

Alternative Helukabel Heavy Mechanical Stress Cable H07ZZ-F

Alternative Helukabel Heavy Mechanical Stress Cable H07ZZ-F

For use in dry, damp and wet rooms in commercial and agricultural workshops for connecting equipment where cables are subject to heavy mechanical loads. When laid in pipes or similar closed systems, the use of the cable is permitted up to and including 1000 V AC or 750 V DC against earth.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • For use in dry, damp and wet rooms in commercial and agricultural workshops for connecting equipment where cables are subject to heavy mechanical loads. When laid in pipes or similar closed systems, the use of the cable is permitted up to and including 1000 V AC or 750 V DC against earth.
  • 02 Product characteristics • resistant to: ozone • halogen free
  • 03 Technical certification

    •halogen-free acc. to DIN VDE 0285-525-1 / DIN EN 50525-1 appendix B

    • corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 / DIN EN 60754-2 / IEC 60754-2

    • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

  • •bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332- 3-24 / IEC 60332-3-24 • smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034- 1+2 / IEC 61034-1+2 • ozone-resistant acc. to DIN VDE 0473-811-403 / DIN EN 60811- 403
Product structure
Dynamic information

Min. bend radius, flexible

flexible 8 x Outer-Ø

Min. bend radius, fixed

flexible 4 x Outer-Ø

Temperature range

flexible -5°C to +80°C fixed -20°C to +80°C

Nominal voltage

flexible AC Uo /U 450/750 V

Test voltage core/core

2500 V

Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 rubber acc. to DIN VDE 0207-363-5 / DIN EN 50363-5 (compound type EI8)

Identification  acc. to DIN VDE 0293-308, 1 core(s): black 2 - 5 core(s): colour coded 6 - 36 core(s): black cores with consecutive labeling in white digits

Outer jacket rubber acc. to DIN VDE 0207-363-6 / DIN EN 50363-6 (compound type EM8)

Protective conductor starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor

Stranding
Cores stranded in layers with optimal lay lengths


Jacket color

black


Length marking in meters
