Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

4.2 inch (106.3 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

3.3 inch (85 mm)

Min. bend radius, fixed (factor)

7 x d

Min. bend radius, fixed

2.3 inch (59.5 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max. unsupproted

10 ft/s (3 m/s)

a max., twisted

98.4 ft/s² (30 m/s²)

Length of travel

Travels up to 66 ft (20 m)

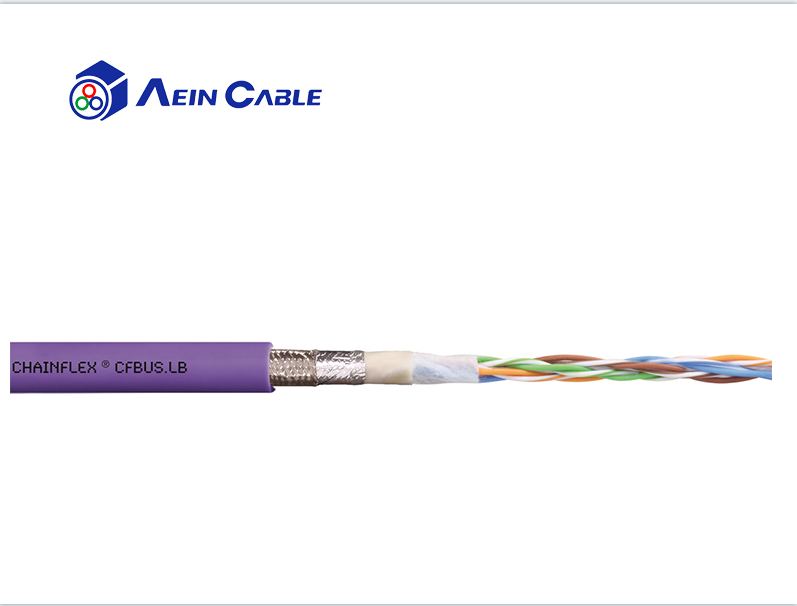

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture (According to bus specification)

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical.

Unshielded

No

Outer jacket

Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in e-chains® (following DIN EN50363-4-1)

Jacket color

red lilac (similar to RAL 4001)
