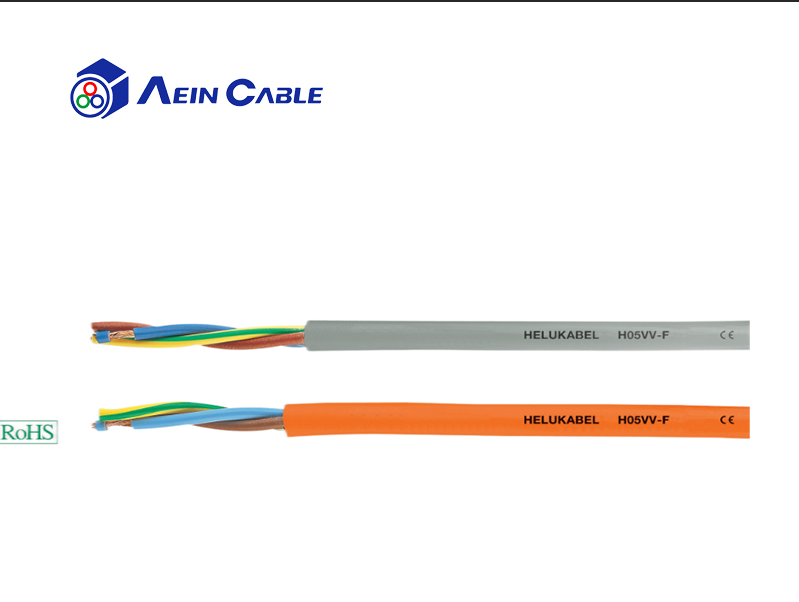

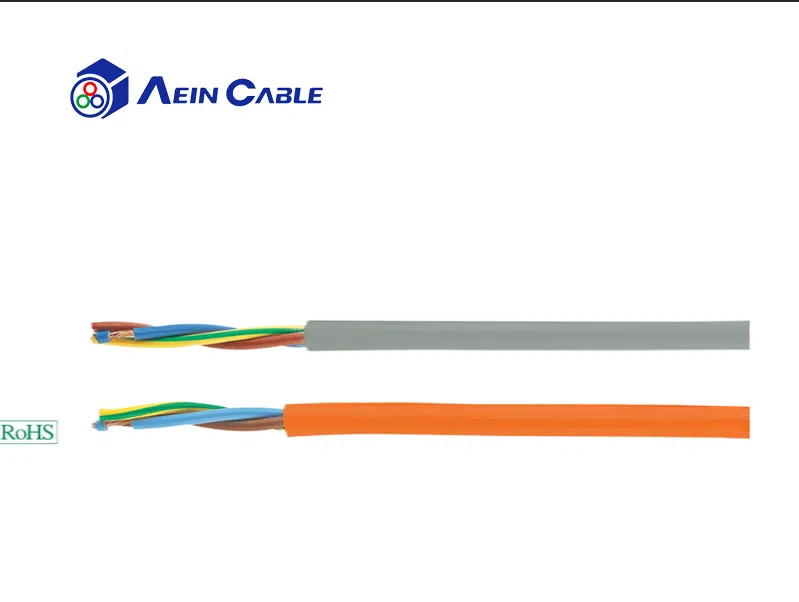

Alternative Helukabel H05VV-F Flexible Colour Coded Cable

Alternative Helukabel H05VV-F Flexible Colour Coded Cable

These cable are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin driver etc. As far as this cable is admitted to the relevant specificationsof the equipment. These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contactwith hot parts of the apparatus and no other influences of heat. The cables are suitable for fixed installation in furnitures, partition walls, decorationcovering and in hollow spaces of prefabricated building parts. They are not qualified for use in outdoors or for use with industrial and farmer machineries, exceptionally in tailoring, etc.= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • These cable are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas.
        • As far as this cable is admitted to the relevant specifications of the equipment.
        • These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences of heat.
        • The cables are suitable for fixed installation in furnitures, partition walls, decoration covering and in hallow spaces of prefabricated building parts.
        • They are not qualified for use in outdoors or for use with industrial and farmer machineries, exceptionally in tailoring, etc.
        • CE= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.


  • 02 Product characteristics •The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to  the wetting properties of lacquers
  • 03 Technical certification

    • PVC self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

Product structure
Cable structure

Conductor

Bare copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 Core insulation of PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3

Identification Core identification to DIN VDE 0293-308 - up to 5 cores coloured- from 6 cores, black with continuous white numbering

Stranding
 Cores stranded in layers with optimal lay lengths

Outer jacket Outer sheath of PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1


Jacket color

By request


Length marking in meters
