Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.3 inch (85.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

2.7 inch (68.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.7 inch (42.5 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. twisted

180 °/m

a max., twisted

60 °/s²

Length of travel

Robots and motions in 3D area, Class 1

Torsion

± 180°, with 1 m cable length

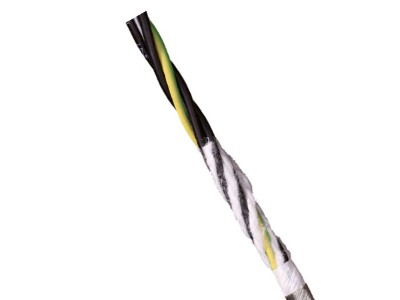

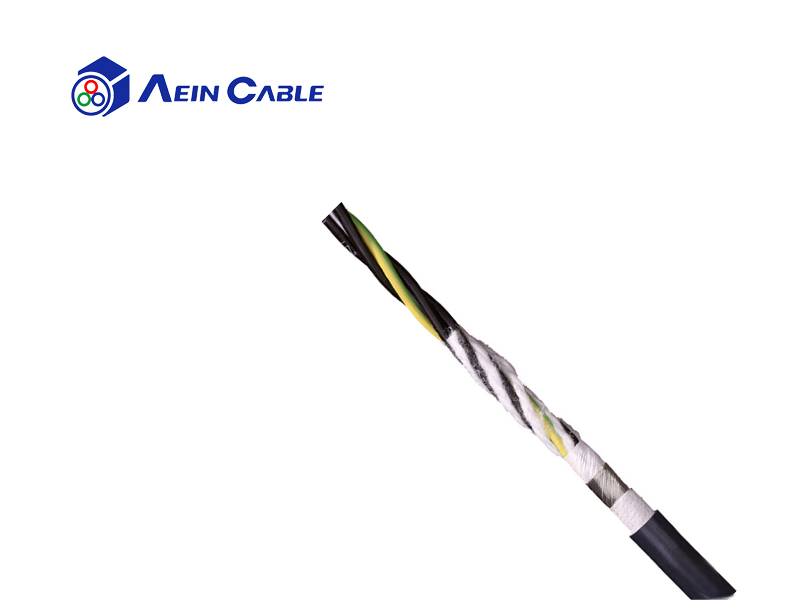

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor identification

Cores black with white numerals, one core green-yellow

Element shield

Extremely torsion-resistant tinned braided copper shield. Coverage approx. 85 % optical

Unshielded

No

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (following EN50363-10-2).

Jacket color

Steel blue (similar to RAL 5011)
