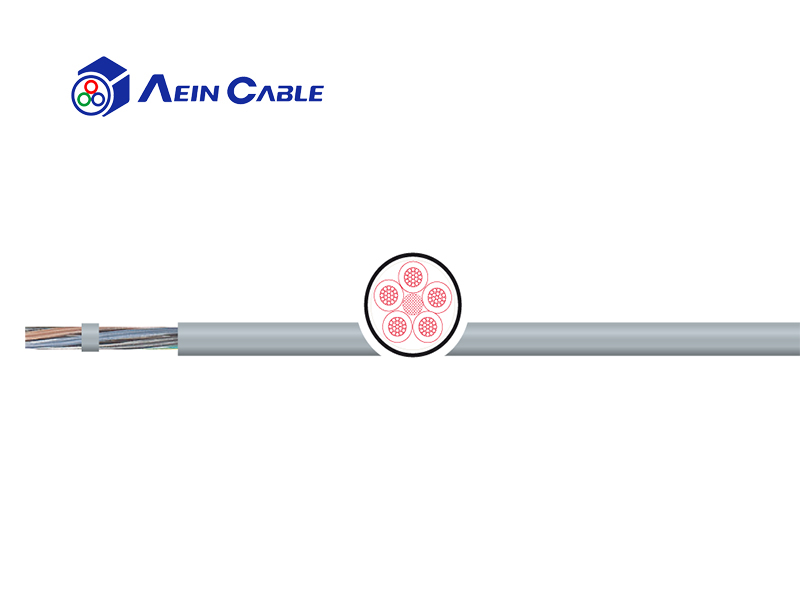

Alternative TKD JB/OB Power Cable 0,6/1kV

Alternative TKD JB/OB Power Cable 0,6/1kV

Power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor- and outdoor use, cable channels and in water.

inquiry
  • Product details
Product introduction
  • 01 Product application power, control and connecting cable in electrical facilities for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying in underground. Applicable also for YSLY or YY.
  • 02 Product characteristics•largely resistant to acids, bases and specified types of oil •4 kV testing voltage
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: PVC
Core identification: Coloured: up to 5 cores acc. to DIN VDE 0293-308; from 6 cores TKD colour code (see technical guideline); G: with GNYE
Stranding: Stranded in layers
Outer sheath: PVC
Sheath colour: Grey, RAL 7001
Rated voltage: Uo/U: up to 16mm² 300/500V or 450/750V (s. right page); from 25mm² 0,6/1kV
Testing voltage: 4 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, see technical Guidelines
Min. bending radius fixed: 4 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -15 °C / +70 °C
Temp. at conductor: + 70 °C in operation; +150 °C in case of short-circuit
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1

Keywords: alternative tkd control cable
