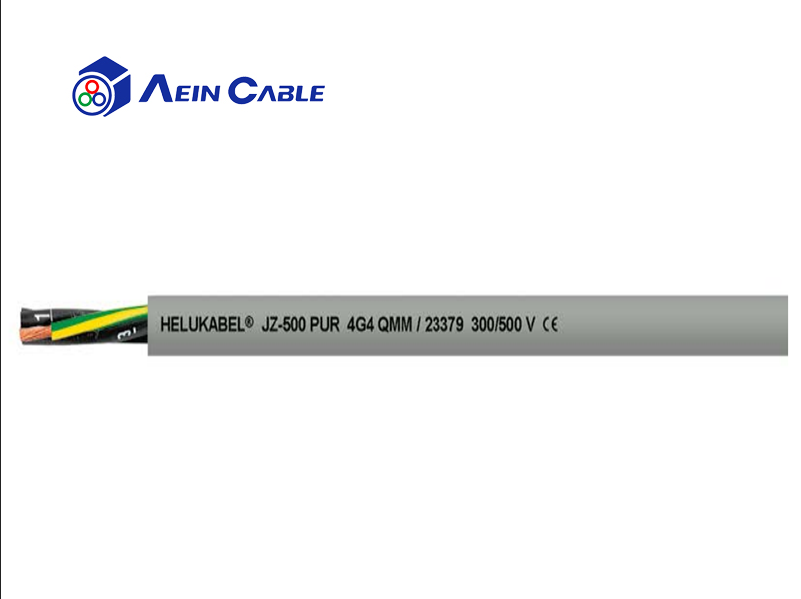

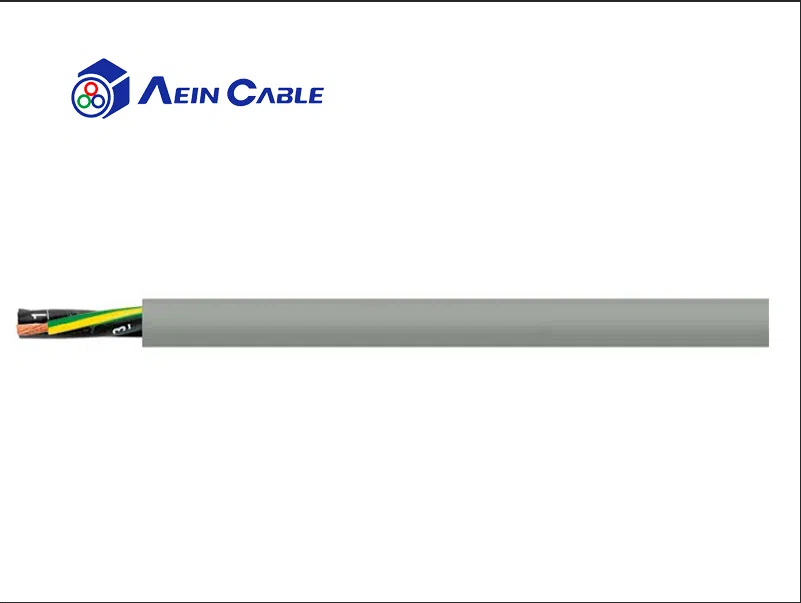

Alternative Helukabel JZ-500-PUR / OZ-500-PUR Colour Coded Cable

Alternative Helukabel JZ-500-PUR / OZ-500-PUR Colour Coded Cable

Connection and control cable, which is distinguished by its high abrasion resistance and notch-tensile strength properties. Due to its resistance to coolant emulsions, it is suited for use in particularly critical locations in machine, tool and plantconstruction, rolling mills and steelworks. Suitable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors.


inquiry
  • Product details
Product introduction
  • 01 Product application

        • Connection and control cable, which is distinguished by its high abrasion resistance and notch-tensile strength properties. Due to its resistance to coolant emulsions, it is suited for use in particularly critical locations in machine, tool and plant construction, rolling mills and steelworks. Suitable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors.


  • 02 Product characteristics• resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater                                                                                                                           • highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion • for outdoor use • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
  • 03 Technical certification

    • oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404                                                  • UV-resistant acc. to DIN EN ISO 4892-2          • weather-resistant acc. to DIN EN ISO 4892-2

Product structure
Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
 PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)

Identification Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits

Protective conductor starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)

Stranding
 Cores stranded in layers with optimal lay lengths

 Screen

braided screen of tinned copper, approx. coverage 85%


Inner sheath
 PVC

Outer jacket PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)


Jacket color

Black (RAL 9005)


Length marking in meters
