Product introduction
-
01 Product application
Suitable for wind power generation equipment in the turbine and fixed installation tower cylinder or other similar occasions. Cable for wind power plant. It can be used in wind power generation equipment in onshore and offshore wind farms.
-
02 Product characteristics
· Excellent resistance to oils, acids, chemicals, water, royal oxygen, extreme temperatures, cutting, tearing and wear.
· Torsion resistance (1440° room temperature 10000 times, low temperature 2000 times)
· Oil resistance (100℃, 24h)
·Resistant to artificial climate aging (1008h) irradiation
· Salt spray resistance (336h)
-
Technical certification03
· Comply with RoHS
· Comply with 2014/35/EU-Guideline(" Low Voltage Directive ")CE
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing

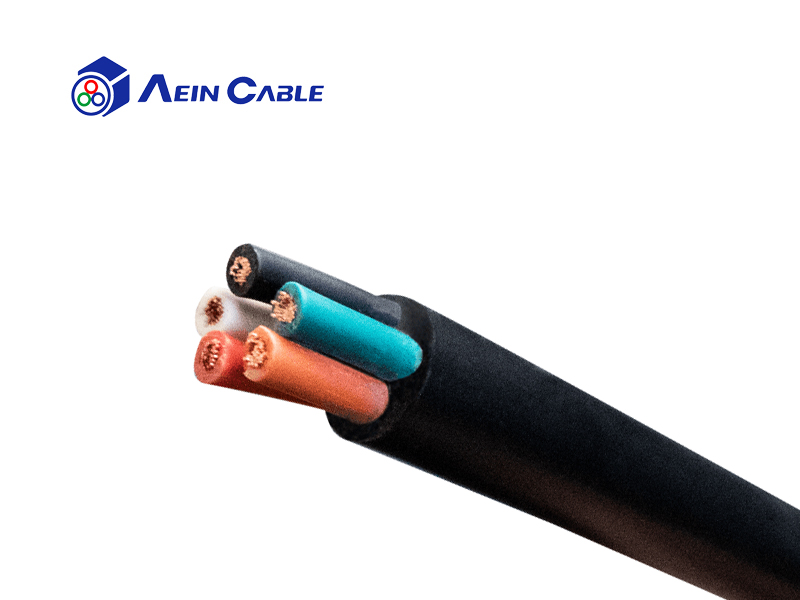

Product structure
Conductor material: bare copper stranded wire
Conductor class: according to DIN VDE 0295 Class 5, reference IEC 60228 Class 5
Insulation :El4 crosslinked elastomer mixture
Core wire identification: According to VDE0293-308 more than 5 colored wires, from 6 black wires with white numbers, with or without GNYE
Stranding: stranding in layers
Outer sheath :EM2 crosslinked elastomer mixture
Jacket color: black
Rated voltage :Uo/U: 450/750 V
Test voltage :2.5KV
Small fixed bending radius: according to DIN VDE 0298 Part 3
Small moving bending radius: according to DIN VDE 0298 Part 3
Temperature rating fixed :-40°C/+90°C
Flame retardant standard: according to IEC 60332-1
Standard :EN50525-2-21
Product Identification Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE
