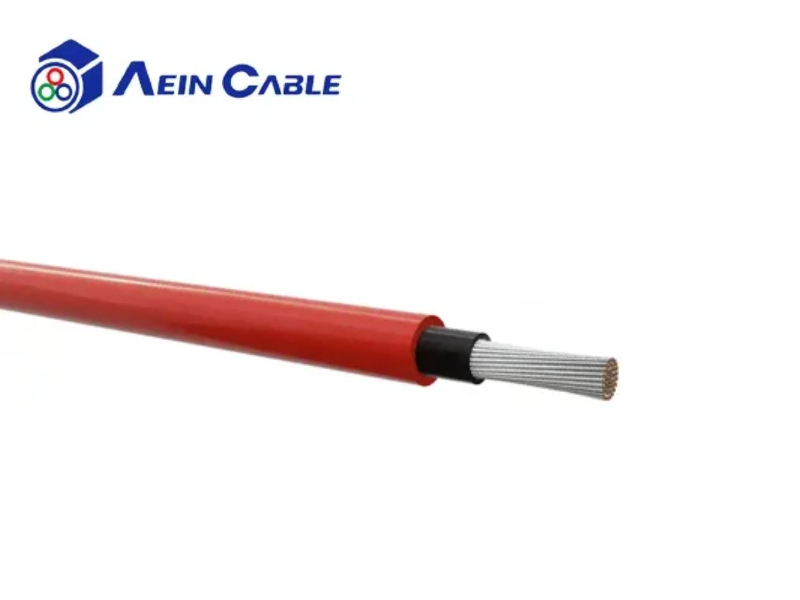

Australian standard energy storage cable DC1500V

Australian standard energy storage cable DC1500V

Australian standard energy storage cables are low smoke, halogen-free, flame-retardant, UV-resistant, ozone-resistant, weather-resistant and anti-aging.

inquiry
  • Product details
Product introduction
  • 01 Product application

    Used for wiring and connection of solar power stations or facilities and equipment.

  • 02 Product characteristics

    · Resistant to acids, alkalis and ozone· Resistant to mineral oil
    · Low smoke, halogen-free and flame retardant

  • 03 Technical certification· Comply with RoHs standards
    ·DIN EN 60228, Class 5 standards
    · Comply with SAA certification
Product structure

Conductor materials: Pure copper wire, tin-plated copper stranded wire

Conductor grade: Complies with IEC 60228 cl.5 standard

Insulation :XLPO

Insulation color: Black RAL9005(optional)

Outer sheath :XLPO

Sheath color: Black RAL9005(optional)

Rated voltage :DC 1500V

Test voltage :4000V

Minimum fixed bending radius :15xd

Fixed minimum/maximum operating temperature :-40°C/+125°C

Halogen-free: Complies with IEC 60754-1

Corrosiveness: Complies with IEC 60754-2

Flame retardant grade: Self-extinguishing and flame retardant comply with EN 60332-1-2

Product Identification :SHANGHAL AEIN WIRE&CABLE CO.,LTD 62930EC131 300mm'1500VDC HALOGEN FREE LOW SMOKE meter mark (Printing spacing ≤500mm)
