Australian standard fire-resistant cable CU X-HF-110/HFS-110-TP 0.6/1KV 110°C

It is widely applied in scenarios with extremely high requirements for circuit integrity under fire conditions, such as fire protection, emergency lighting, evacuation indication, and building automation.

inquiry

Product details

Product introduction

01 Product application It is widely applied in scenarios with extremely high requirements for circuit integrity under fire conditions, such as fire protection, emergency lighting, evacuation indication, and building automation.
02 Product characteristics • SAA certification• The flame retardancy complies with IEC 60332-1-2 • Fire resistance complies with WS52W
03 Technical certification • Complies with RoHS standards
• SAA certification• AS/NZS 5000.1/AS/NZS 3013

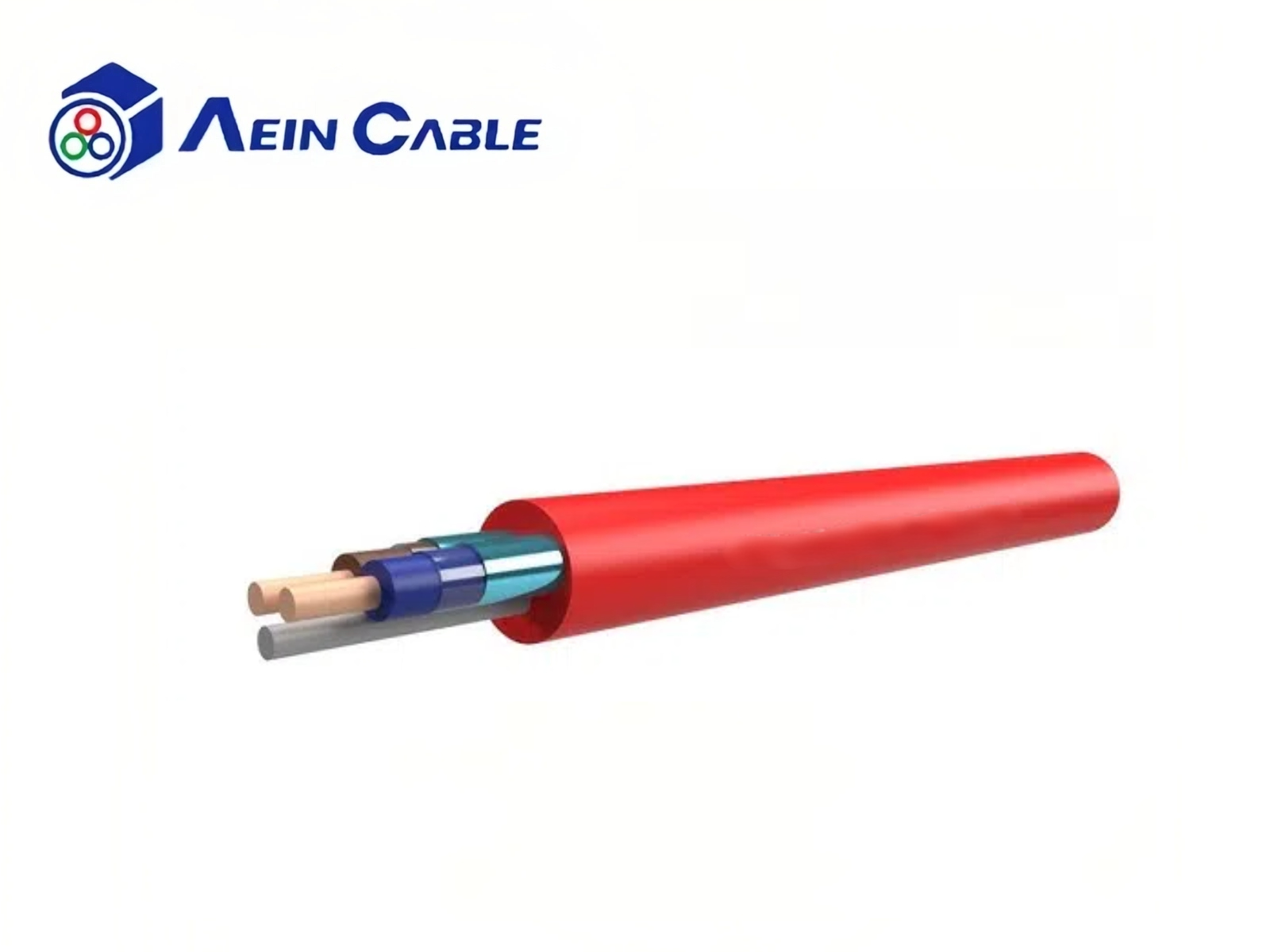

Product structure

Conductor material: oxygen-free copper

Core wire insulation: mica tape +X-HF-110(low smoke zero halogen)

Twisting: Layered twisting

Outer sheath :HFS-110-TP(Low Smoke zero halogen)

Outer sheath color: Red (optional)

Rated voltage :0.6/1 kV

Test voltage :2.5 kV

Search resistance: Complies with ASNZS1125 standard

Temperature class :-40°C/+110°C

Flame retardant grade: Self-extinguishing, in compliance with IEC 60332-1 standard

Standard :AS/NZS 5000.1/AS/NZS 3013

Product identification: Aein CABLE E503807 (UL) Model *x**AWG Temperature Voltage c (UL) FT2

Keywords: American standard UL certified cable American standard cable
