Product introduction
-
01 Product application
These are cables in the measuring, control and regulation technology sectors for telecommunication systems, impulse and data transfer purposes and for electronic devices with plugged systems in the smallest of dimensions, in particular under tough conditions. The cables have shielding braids made from tin-plated copper wires with a high optical density. This protects against internal or external electro-magnetic interference.
-
02 Product characteristics
The TPU outer sheath is, thanks to the mechanical and chemical properties, for example, high wear resistance, flexibility and kink resistance, also resistant to mineral oils and greases, hydrolyse, microbes and migration even under low temperatures.
Special versions with special conductor constructions, core identifiers, sheath colours, for special resistances and expanded temperature ranges are all available on request.
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

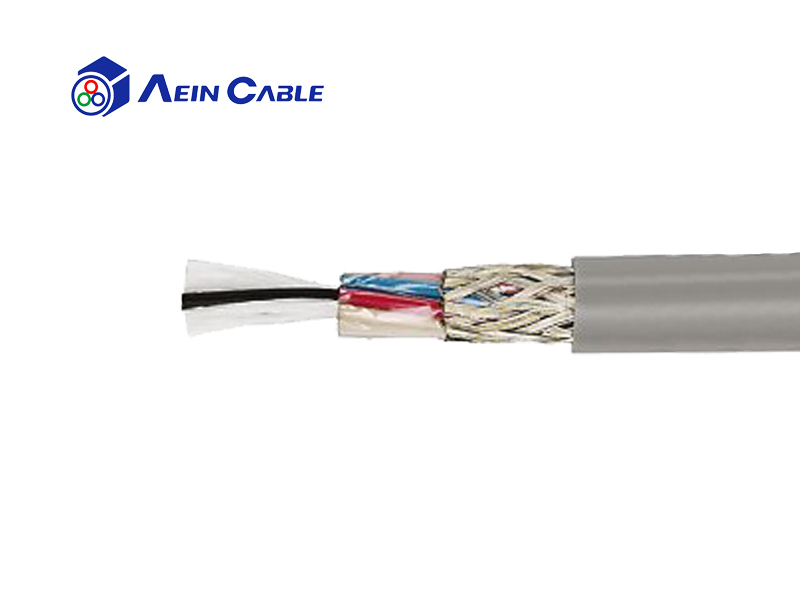

Product structure
CONDUCTOR: Litz fine copper wire, not insulated
TEMPERATURE RANGE: In motion -5° C up to +70° C, still up to -30° C
INSULATION: PVC
BENDING RADIUS: 15 x D (cable diameter)
STRANDING: Concentric cores in layers, colour sequence, thus, alignment from outside to inside
TEST VOLTAGE: Effective 2,000-3,000 Volts according to cross-section
NOMINAL VOLTAGE: Maximum of 300 Volts
SHIELDING: Entire sheath made from tin-plate braided copper wire with an optical density of at least 80 %
BREAKDOWN VOLTAGE: Minimum 3,000 Volts
SHEATH: Polyurethane, grey
RESILIENCE UP TO 30° C
