Product introduction
-
01 Product application
Electric hoist and arm controller connected cable, widely used in dry or wet indoor, can be forced to guide the installation of left and right non-continuous movement, such as electric hoist, driving and inspection equipment, self-supporting shaft or
inclined shelf, crane, port and other occasions. The outer sheath can be customized according to different climatic conditions and use occasions, so this product can also be used in the open air.
-
02 Product characteristics·
Water and oil resistance
· Wear resistance
· Load-bearing tensile resistance
-
03 Technical certification· Customization is acceptable for products with special structures,
other sizes, cores and colors of sheathing

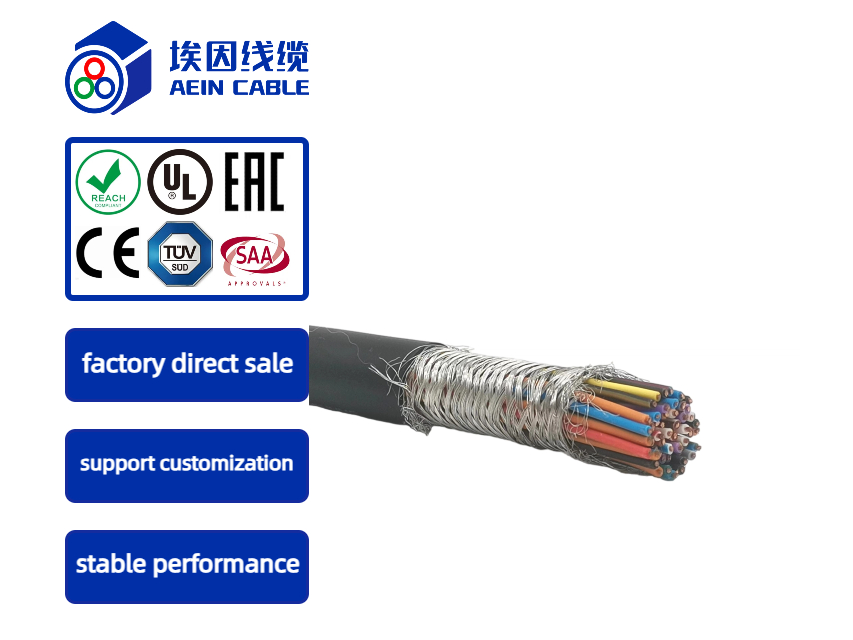

Product structure
Conductor material: multi-strand fine stranded oxygen-free bare copper wire; Meets VDE0295 CLASS 5 or 6 standards
Insulation: High quality mixed elastomer nitrile material soft insulation
Color identification: color core wire or black wire body white number, more than 3 core with yellow/green two-color ground wire
Reinforcement: multiple jute rope filling, one or two torsion-free self-bearing steel wire to carry the running tension
Core structure: anti-torsional structure layered
Lining layer: Flexible non-woven wrapped wire body buffer
Sheath material: Special mixed weather resistant elastomer nitrile material
Jacket color: Black (RAL9005) Grey (RAL7001) Orange (RAL2003)
Rated voltage :≤1.5mm²:300/500V, >1.5mm²:450/750V
Test voltage :≤1.5mm²:2500V, >1.5mm²:3000V
Small bending radius: fixed laying :10×D(cable outer diameter); Mobile installation :12×D(cable outer diameter)
Operating temperature: Fixed laying :-30℃ to +80℃; Mobile installation :-20℃ to +80℃(customizable -55℃ to +105℃)
Radiation resistance :8x107cJ/kg
Flame retardant: according to IEC60332-1 or -2
Product ID :Aein beike SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage
