Product introduction
-
01 Product application
This type of cable is equipped with a flame-retardant polyurethane sheath and is fully shielded. It is mainly applicable to tunnel excavation equipment. When the cable is damaged, it is fully shielded to provide power protection and circuit breaker for
the detection system.
-
02 Product characteristics· Flame retardancy complies with EN 60332-1-2:IEC 60332-1-2;
Wear-resistant, tear-resistant, oil-proof and ozone-resistant
Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.
-
03 Technical certification· Comply with RoHS standards
· Comply with the 2014/35/EU standard "Low Voltage Directive" CE.

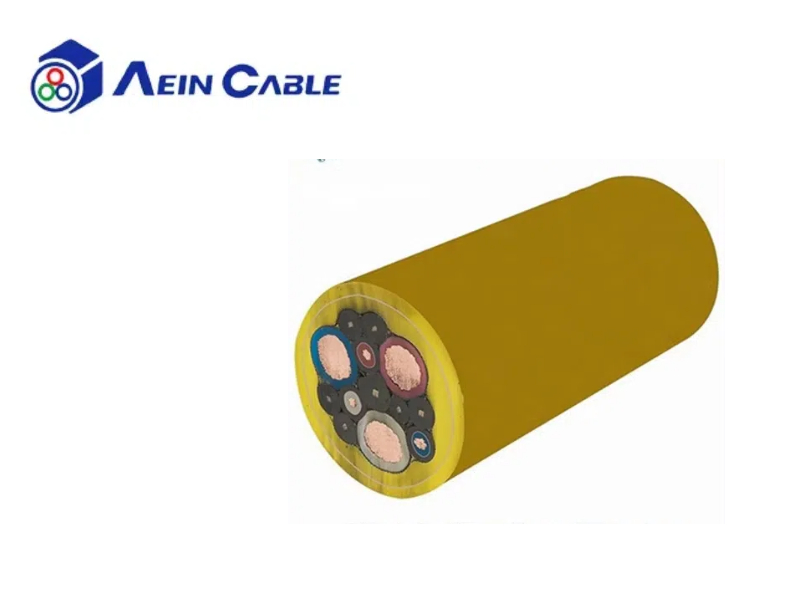

Product structure
Conductor: Flexible bare copper wire, Grade 5 IEC60228
Reinforcing element: Polyarylamide
Insulation :XLPE cross-linked polyethylene
Complete cable shielding: Bare copper wire with semiconductive winding
Core wire identification: brown - black - gray. Ground wire: yellow-green dividing wire
Inner sheath: Thermoplastic plastic mixture
Outer sheath: Halogen-free flame-retardant polyurethane
Colour: Yellow
Rated voltage :0.6/1(1.2)kV
Fixed minimum bending radius :10xd
Small bending radius movement :18xd
The temperature rating is fixed :-30°C/+90°C
Temperature range :-15°C/+90 °C
Flame retardant grade :IEC 60332-1
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter mark
