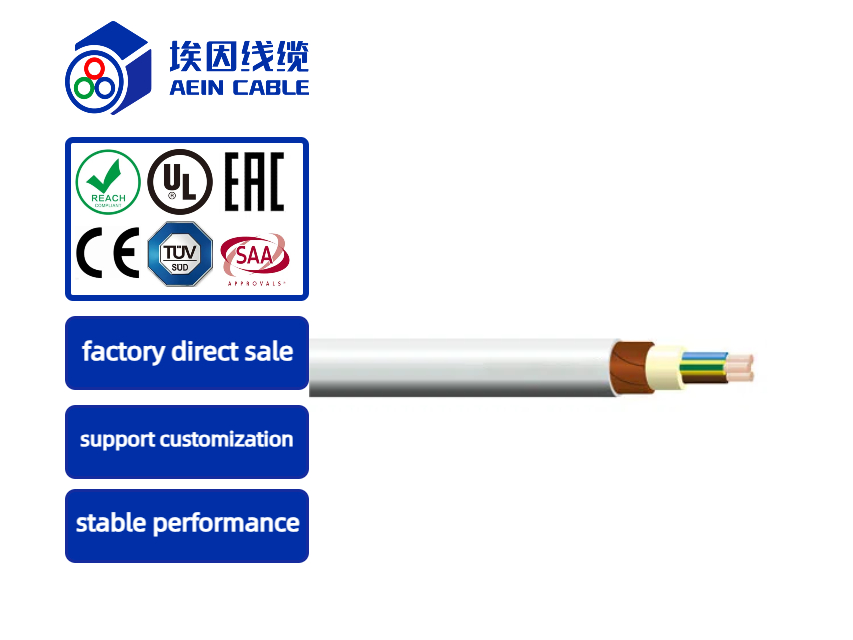

FG160H1R16, TUV German standard certification

FG160H1R16, TUV German standard certification

Suitable for indoor and outdoor installation, also suitable for wet places and external installation: for installation on surface mounting or metal structures; It is allowed to be buried directly in the ground. When a certain level of protection is required against electromagnetic interference, it is usually used for the interconnection of machines or machine components.


inquiry
  • Product details
Product introduction
  • 01 Product application

    Suitable for indoor and outdoor installation, also suitable for wet places and external installation; For mounting on surface-mounted or metal structures; It is allowed to be buried directly in the ground. When a certain level of protection is required against electromagnetic interference, it is usually used for the interconnection of machines or machine components.

  • 02 Product characteristics

    · Flame retardant in accordance with IEC 60332-1-2
    · Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing.

  • 03 Technical certification

    · RoHS compliant
    · Compliance with 2014/35/EU-Guideline(" Low Voltage Directive ")CE
    · Comply with TUV certification

Product structure

Conductor material: bare copper wire

Conductor type: According to IEC 60228 cI.5 standard cI.2 Optional

Insulation :G16 rigid ethylene-propylene rubber (HEPR) compound

Sheath: Type R16 PVC

Core identification: two cores red and blue; Three core red yellow green; Four core red yellow green blue; Five core red yellow green blue yellow/green

Jacket color: Grey RAL7001

Stranding: stranding in layers

Shielding: copper-plastic composite tape

Rated voltage :0.6/1 kV

Test voltage: 3.5 kV

Conductor resistance: According to IEC 60228.5 standard

Conductor rated temperature :90°C

When short-circuiting (5s or less) occurs, the conductor temperature does not exceed 250°C

Small bending radius fixed :7.5 x d

Small bending radius movement :15 x d

Fixed temperature :-15°C/+90°C

Moving temperature :-5°C/+90°C

Flame retardant grade :IEC 60332-1-2, EN50265-2-1

Standard :IEC60502-1, DIN VDE 0295

Product identification :Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter standard

Keywords: FG160H1R16 cable
