Product introduction
-
01 Product application
Suitable for indoor and outdoor installation, also suitable for wet places; For fixed installation on surface mounting or metal structures; It is allowed to be buried directly in the ground.
-
02 Product characteristics
· Flame retardant in accordance with IEC 60332-1-2
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing.
-
03 Technical certification
· Comply with RoHS standards
· Comply with Directive 2014/35/EU-Guideline (" Low Voltage Directive ")CE
·Comply with TUV certification

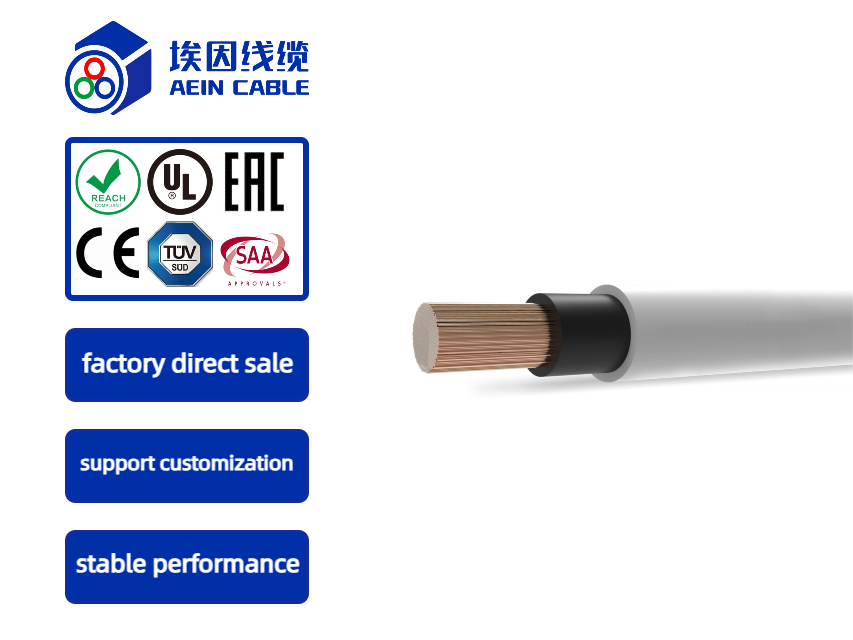

Product structure
Conductor material: bare copper wire
Conductor type: Compliant with IEC 60228 cl.5 cl.2 Optional
Insulation :G16 rigid ethylene-propylene rubber (HEPR) compound
Sheath: Type R16 PVC
Core identification: two cores red and blue; Three core red yellow green; Four core red yellow green blue; Five core red yellow green blue yellow/green
Jacket color: customizable
Stranding: stranding in layers
Rated voltage :0.6/1kV
Test voltage: 3.5kV
Conductor resistance: According to IEC 60228 cl.5 standard
Conductor operating temperature :250°C
Small bending radius fixed :7.5x d
Small bending radius movement :15x d
Fixed temperature :-15°C/+90°C
Moving temperature :-5°C/+90°C
Flame retardant grade :IEC 60332-1-2, EN50265-2-1
Standard :IEC60502-1, DIN VDE 0295
Product identification: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
